What is this invention?

Nozzles screens used in the fluid processing units

Looking for an improved nozzle/screen for fluid flow distribution/collection? Look no further than the invention described here.

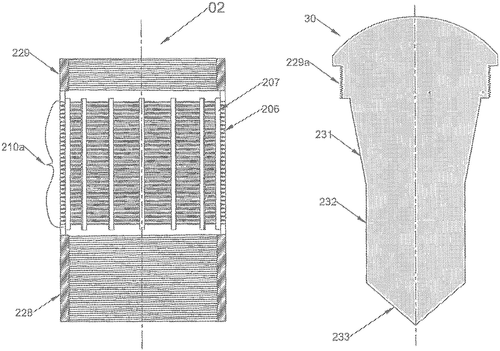

The improved nozzle/screen provides a uniform flow throughout its periphery by having outer casing made of stacked flat rings with micro opening between said stacked ring. A central conduit has holes for flow of fluid entering through the said outer casing and means to regulate fluid flow.

What are some key features of the invention?

• Nozzle/screen for fluid flow distribution/collection

• Invention relates to an improvement in this nozzle/screen

• The improved nozzle/screen comprises outer casing made of stacked flat rings with micro opening between said stacked ring providing uniform throughout its periphery.

• A central conduit having holes for flow of fluid entering through the said outer casing. The said conduit having means to regulate fluid flow.

What are some similar inventions on the market?

Some similar products on the market include nozzles/screens for fluid flow distribution/collection used in chemical plants and other industrial processes.

How could this be used?

The invention relates to an improvement in nozzles/screens for fluid flow distribution and collection used in fluid processing units. The improved nozzle/screen comprises a flow restricting cylindrical body with ring washer-shape aperture control at the entrance/exit, coupled with outer casing made of stacked flat rings with micro-opening between said stacked ring providing uniform throughout its periphery. A central conduit having holes for flow of fluid entering through the outer casing, while means is provided to regulate the fluid flow.

What are some things to look out for with this?

There are a few risks to using this type of nozzle. The first is that the flow of fluid through the central conduit may be insufficient, leading to an irregular spray pattern and decreased efficiency. Additionally, if the outer casing becomes damaged, it could release debris that would further disrupt the spray pattern and performance.

What are the overall impressions of this invention?

The product is designed for industrial applications and has a good design.
