Most innovative companies for 02/22/2022 (new inventions)
Exciting new inventions from Hyundai Motor Company, Fanuc Corporation, Ford Global Technologies, Llc, The Boeing Company And Brother Kogyo Kabushiki Kaisha
This is a weekly article summarizing a handful of inventions from the most innovative companies in the world. The summaries are created by an A.I. and proof-read by a human before publication. Attempts are made to ensure accuracy of the descriptions, but it is very much a work in progress. Each invention description is preceeded by a poem about the invention that is written by the A.I. I have found the limerick is actually quite good at explaining the invention in simple terms. Enjoy!
Hyundai Motor Company
Keep your home clean with this powerful air cleaner!
What is this invention?

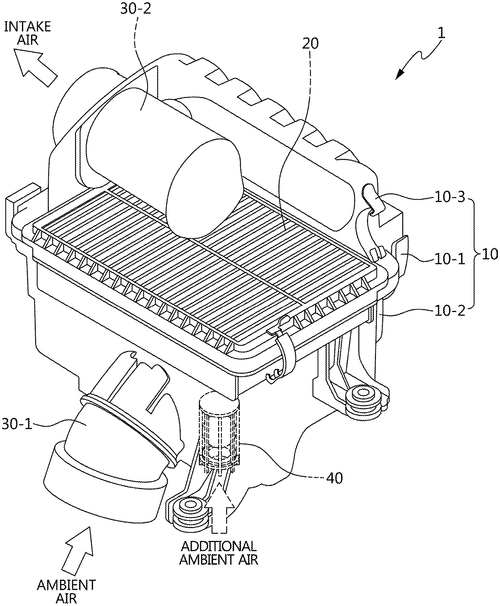

Air cleaner having built-in valve and intake system thereof
There once was an air cleaner device
That worked by suction to clean the air.
It had a filter case
To introduce the air,
And a built-in valve to keep things clear.
There's nothing like a good air filter to keep your environment clean and healthy. The Hyundai Motor Company Air cleaner has just that - a built-in valve and intake system that helps to remove foreign substances from the atmosphere. This air cleaner is perfect for use in places where you need to stay safe and healthy, such as offices or homes. Not only does this air cleaner help to improve the quality of the air you breathe, but it's also very easy to use - simply attach it to an exhaust pipe and start breathing clean air immediately!
The air cleaner may include a filter case configured to introduce, by a suction force of an internal space, ambient air being discharged through a filter provided in the internal space as intake air from which foreign substances are removed. The built-in valve may be configured to form an ambient air introduction path for introducing the ambient air and an additional ambient air introduction path separated from the ambient air introduction path and to open the additional ambient air introduction path so that the ambient air flows into through the additional ambient air introduction path when the suction force is increased.
US Patent 11253806
HYUNDAI MOTOR COMPANY

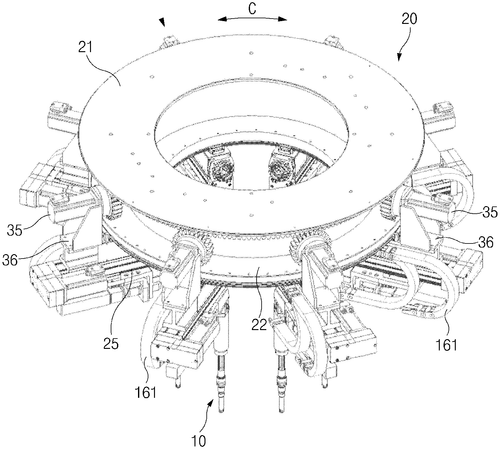

2-Dimensional Fastening Apparatus Provides Customized Positions
What is this invention?
Fastening apparatus and method for operating same
There once was a device for fastening
That included a main structure and a moving one
With supports and fastening devices all in place
It could change positions with great precision
In any direction, radial or angular
With so many different types of applications requiring fastening, it is no wonder that there is a need for an improved fastening apparatus. The Hyundai Motor Company has come up with just such an invention - the Fastening Apparatus and Method for Operating Same. This innovative system features a main structure that can be vertically movable, a support connected to the movable structure, a plurality of fastening devices mounted on the support, and a variation mechanism to variably position the fastening devices in two dimensions. In addition, this system allows individual movement along radial and angular coordinates of a polar coordinate system. Together, these features make this apparatus perfect for applications where precision is key - like aircraft manufacturing or automotive assembly.
The fastening apparatus includes a main structure, a movable structure mounted to be vertically movable with respect to the main structure, a support connected to the movable structure, and a plurality of fastening devices mounted on the support. The variation mechanism changes the fastening positions on a 2-dimensional coordinate, and also individually moves the plurality of fastening devices along a radial coordinate and an angular coordinate of a polar coordinate system. This allows for precise positioning of the fastening devices in any direction.
US Patent 11253964
FANUC CORPORATION

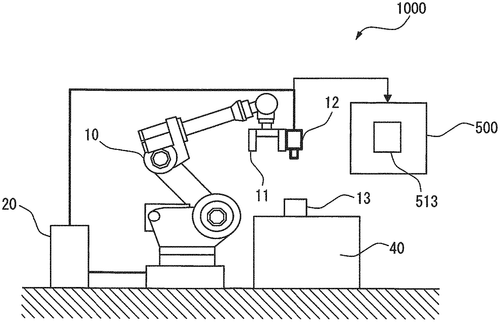

Machine Learning Device Learns to Move Workpiece Close to Target
What is this invention?
Machine learning device, robot control device and robot vision system using machine learning device, and machine learning method
There was a machine learning device
That had a state observation unit
It calculated the movement amount
To bring the image close to the target
So it could learn how to move from an arbitrary position to the target position
With machine learning becoming more and more popular, it's no surprise that there are now devices available that can learn how to control various machines. One such device is the FANUC CORPORATION Machine Learning Device, which uses machine learning to control arm movement in order to keep workpieces close to a target image.The Machine Learning Device works by observing state variables - in this case, an image of the workpiece captured by a vision sensor. Once this data has been collected, the device then calculates movement amounts for the arm end portion so as to bring the image close to the target image. The target position is a position in which the vision sensor and workpiece have a predetermined relative positional relationship, meaning that you can easily move your workpiece towards or away from the target image without having to reposition yourself constantly. Overall, the FANUC Machine Learning Device is a great addition for anyone who needs help controlling machines using machine learning techniques. It's simple to use and can be used with any type of machine - making it perfect for both industrial and domestic applications alike.
The machine learning device includes a state observation unit for observing, as state variables, an image of a workpiece captured by a vision sensor. The movement amount is calculated so as to bring the image close to the target image. The target image is retrieved as determination data. The learning unit learns the movement amount to move the arm end portion or the workpiece from the arbitrary position to the target position.
US Patent 11253999
Fanuc Corporation
Machine Teaching Terminal Keeps Workers Safe
What is this invention?

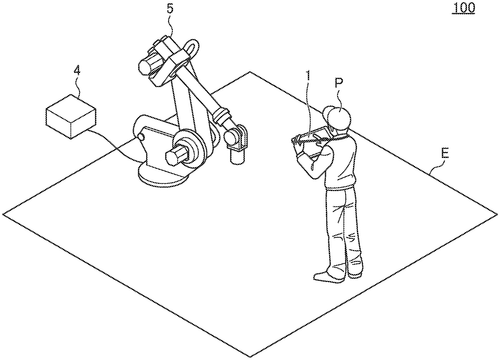

Machine teaching terminal, machine, non-transitory computer readable medium storing a program, and safety confirmation method for teaching machine
There once was a machine so smart,
It could teach workers without a device.
With just a touch panel display,
Abnormalities it could relay--
Safety was never so easy and nice!
With so many machines in use today, it's essential that they are taught properly - and with the help of a machine teaching terminal like the one offered by Fanuc Corporation. This device is specifically designed to be connected to a robot within a work area, and is used to teach the robot how to do its job safely. By using an abnormality detection part and signal transmission part, this terminal ensures that any abnormal state detected on-site will be transmitted directly to the robot for corrective action. In addition, since it is compatible with most robots, there is no need for additional devices or software - making it easy for anyone to get started learning about safety procedures for their machines!
This document describes a machine teaching terminal, machine, program, and safety confirmation method that can be used to ensure the safety of a worker without the need for an additional device. The terminal includes a touch panel display that is accessible by the worker and which accepts input. The detection part detects input to the display and sends this information on to the abnormal signal transmission part. If there is an abnormality detected on this screen, then the transmission of this signal will indicate this to the robot.
US Patent 11254000
FANUC CORPORATION
New Control System Helps Change Robot Cell Order
What is this invention?

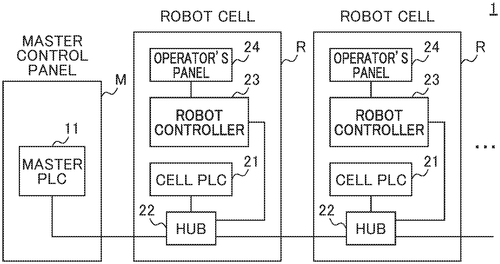

Controller, control system and ladder program
There was a control system so great,
It could change the order of robot cells.
The master PLC received first input signals,
And then outputted an instruction for operation.
This ladder program was really quite neat,
And it made the whole process much simpler.
In today's world, there are countless opportunities for advancement and growth. One of the most important ways to achieve this is through innovation - and that's exactly what FANUC Corporation has done with their latest invention: the controller capable of facilitating changing of the order of robot cells.This breakthrough controller not only allows for a more efficient workflow, but it also provides flexibility when it comes to changes in operation. With so many different patterns available, you can be sure that there will always be a perfect fit for your specific needs. Plus, thanks to its easy-to-use ladder program format, you'll have no trouble getting started right away. So if you're looking for an edge in today's competitive market, look no further than FANUC Corporation - your trusted source for innovative technology solutions.
The patent describes a control system, ladder program, and master PLC that can be used to change the order of robot cells. The master PLC receives first input signals indicating the order of operation of robot cells, and second input signals indicating work completion in the robot cells from each of the plurality of robot cells. The master PLC outputs an output signal for instruction of operation to the robot cell specified on the basis of combination of the first input signals, and second input signal according to one or more ladder programs stored in storage unit.
US Patent 11254001
Fanuc Corporation
Robot Device Learns to Operate More Accurately
What is this invention?
Robot device
There once was a robot device
That included a robot and more
A sensor to detect
A target's position, in fact
And low-speed position information, to keep score
Robots have been a staple in manufacturing for years now, and there are good reasons for this. Automation has made many tasks easier and faster than ever before, and robots are perfect for these types of applications. One of the most popular types of robots is the industrial robot, which is used to perform various tasks in factories. One of the main benefits of industrial robots is their ability to operate at high speeds - something that is essential when working with delicate or sensitive materials. In order to achieve high speeds, industrial robots often rely on sensors to keep track of their surroundings. One such sensor is the position sensor, which helps industrial robots stay within designated boundaries while they're working.The Fanuc Corporation Robot device includes a position sensor that can be used to detect values related to the position of a control target portion of the robot. This information can then be used by the low-speed position information acquisition section to acquire low-speed position information of the control target portion. The calibration section can use this data along with command position data acquired through an operation program to perform calibration between the sensor and robot. Finally, learning control section can use detection values from the sensor as well as low-speed and command positions acquired through calibration data to learn a correction amount that reduces deviation between operation described in an operation program and actual operation of control target portion.
The robot device includes a robot, an operation control section, a sensor configured to detect a value related to a position of a control target portion of the robot, a low-speed position information acquisition section configured to acquire low-speed position information of the control target portion, a calibration section configured to perform calibration between the sensor and the robot by using the low-speed position information and a command position, and a learning control section configured to learn a correction amount that reduces deviation between operation described in an operation program and actual operation of the control target portion, by using detection value of sensor acquired when robot is operated in accordance with operation program, low-speed position information or command position.
US Patent 11254006
Ford Global Technologies, LLC
VISCOUS POLYMER FOR CROSS-CAR BEAMS
What is this invention?
Water-assisted injection molded cross-car beam
There once was a method for forming a cross-car beam
Which required a composite to be melted and made into a viscous polymer
This was then injected into a mold under pressure and evacuated
Cooling the remaining viscous polymer formed the cross-car beam

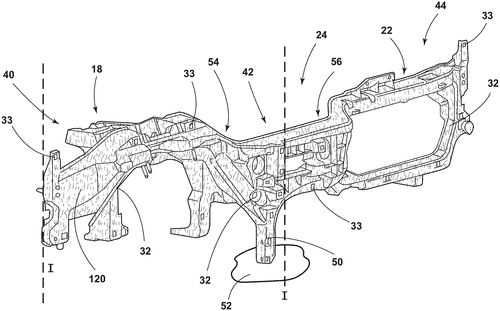

Ford Global Technologies, LLC has come up with a new way to form cross-car beams - Water-assisted injection molded. This process is much faster and easier than traditional methods, and it results in much stronger beams that are resistant to warping. Plus, this technology is perfect for applications where space is at a premium - like in vehicles!
The patent describes a method of forming a cross-car beam. First, a composite is melted to form a viscous polymer. This polymer is then injected into a mold, where it is pressurized and evacuated to form a channel through it. The cooled remaining viscous polymer forms the cross-car beam.
US Patent 11254037
THE BOEING COMPANY
DIE ASSEMBLY FOR FORMING A COMPOSITE GAP FILLER INCLUDES A FIRST DIE HAVING A FIRST PORTION WHICH EXTENDS ALONG A FIRST CENTRAL AXIS OF THE FIRST DIE
What is this invention?
Apparatus and method for making radius composite gap filler
There once was a die named Al
Who had a composite gap filler
When two dies were brought together
He'd close off the space with his third die wall
So they could form one big happy quilt.
The Boeing Company has invented a die assembly that is perfect for forming composite gap fillers. This die assembly includes a first die which has a first curved surface with a radius that changes as the curved surface extends about the central axis. A second die is also included which has a second curved surface with a radius that changes as the curved surface extends about the central axis. Finally, a third die is used to define the wall of the composite gap filler. When these dies are assembled together, they form a closed gap - ensuring that your parts are perfectly aligned and fit together perfectly.
The die assembly described in The patent forms a composite gap filler by abutting two dies, with the third die defining a widened wall that helps to close the gap between them. The first die has a curved surface that changes in radius as it extends about the first central axis, while the second die has a curved surface that also changes in radius but does so more gradually. When these two dies are brought together, they form an open space until the widened wall of the third die intervenes and closes off the gap.
US Patent 11254074
FANUC CORPORATION
Curing Linear Objects Together for Machining
What is this invention?
Machining system and machining method
The machining system is quite a find
It applies resin to objects in a line
The curing device then brings them close together
And radiates light to make the resin better
This binds the objects and the workpiece is fine
With so many new and innovative machining systems on the market, it can be hard to decide which one is right for your project. But don't worry - we're here to help! In this article, we'll take a look at the FANUC Machining System and explain why it might be the perfect choice for your next project.First and foremost, this system is incredibly easy to use. Simply apply photocurable resin to the surfaces of your objects, cure it using light from a curing device, and then machine away! There are no tricky setups or adjustments required - everything just works as designed. Plus, thanks to its compact design, this system can easily be transported from one project site to another.But that's not all - there are plenty of other reasons why you should consider using this system on your next project. For starters, FANUC's patented radial-contact curing process ensures that your objects will bond together perfectly during machining - meaning less time spent trying to fix mistakes later on! And finally, because this system uses standard parts and accessories available in most shops, installation and setup are both simple and straightforward. So if you're looking for an easy-to-use machining system that delivers great results every time, look no further than the FANUC Machining System!
The machining system includes an application device that applies a photocurable resin to surfaces of a plurality of linear objects provided in a workpiece. The curing device brings the linear objects, to which the photocurable resin has been applied by the application device, into close contact with each other in radial directions and that radiates light onto the photocurable resin, which has been applied to the linear objects brought into close contact. This cures the photocurable resin, which then binds the linear objects together. The machining device then machines the workpiece using these bound linear objects as part of its structure.
US Patent 11254106
Brother Kogyo Kabushiki Kaisha
Liquid Ejecting Devices Include a Variety of Options
What is this invention?
Liquid ejecting device including first endmost liquid ejecting head having liquid ejecting portion positioned deviated toward second endmost liquid ejecting head
A liquid ejecting device has a few
liquid ejecting heads that move to and fro.
Each one is configured to shoot out goo,
and they're arrayed so they can cover the whole view.
The first and second ones are at each end,
and the rest are spaced in between;
the liquid ejection portion's on the side,
so it doesn't get in between.
Liquid ejecting devices have come a long way in recent years, and the Brother Kogyo Kabushiki Kaisha Liquid Ejecting Device is one of the most advanced on the market. This device includes a pair of liquid ejecting heads that are movable in a main scanning direction - allowing you to easily target and eject liquid from your objects.
A liquid ejecting device includes a plurality of liquid ejecting heads reciprocally movable in a main scanning direction and arrayed in the main scanning direction. Each of the plurality of liquid ejecting heads include a liquid ejecting portion configured to eject liquid. The plurality of liquid ejecting heads includes: a first endmost liquid ejecting head; and a second endmost liquid ejecting head. The first endmost liquid ejected head constitutes one end in the main scanning direction of the plurality of Liquid Ejecting Heads. The second endmost Liquid Ejecting Head constitutes another end in the main scanning direction of the plurality of Liquid Ejecting Heads. Theliquid ejection portion is disposed at position deviated toward remaining one of first Endmost Liquid Ejector Head and Second Endmost Liquid Ejector Head
US Patent 11254124
BROTHER KOGYO KABUSHIKI KAISHA
Liquid Discharge Head Includes Individual Channel Rows, a Common Channel, and a Supply Port Via Which Liquid Is Supplied to the Common Channel; and a
What is this invention?
Liquid discharge head
There once was a liquid discharge head
That included individual channel rows
With a common channel in between
And a supply port and discharge port, too
Each of the channels had a nozzle for spraying
Liquid discharge heads are a common piece of welding equipment, and for good reason - they make Welding much easier than ever before. This BROTHER KOGYO KABUSHIKI KAISHA invention includes individual channel rows that are aligned in a first direction, each of which includes a nozzle - making it easy to deposit even the most difficult welds. Additionally, the common channel extends over an entire length of the area in which the individual channels are arranged, meaning that you don't have to worry about liquid spilling all over your work area. And if you need to move your Liquid discharge head from one project to another, it's easy to do so thanks to its compact design.
The liquid discharge head includes individual channel rows, a common channel, a supply port via which liquid is supplied to the common channel, and a discharge port via which the liquid is discharged from the common channel. Each of the individual channels in the individual channel rows are formed of individual channels aligned in a first direction, each of the individual channels includes a nozzle, and the individual channel rows are arranged in a second direction crossing the first direction. The common channel extends in both directions over an entire length of an area where the individual channel rows are arranged.
US Patent 11254131
Brother Kogyo Kabushiki Kaisha
A Printer That Ejects Ink In The Right Direction
What is this invention?
Printing apparatus and non-transitory computer-readable recording medium for printing apparatus
There was a printing apparatus that had two types of nozzles,
The first type for flushing and the second for ink ejection.
When the print head was in its first state,
The second type would be at the position of the ink receiver.
But during a period when ink was ejected from the first type toward the printing medium,
The second type would cause it to be directed toward theink receiver!

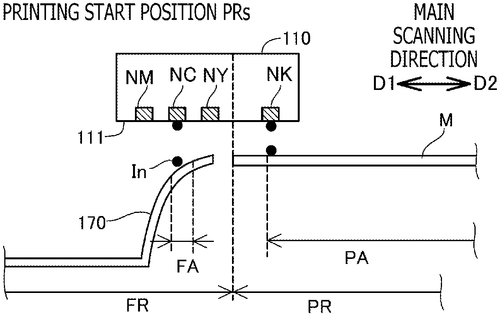

Today we are introducing a new printing apparatus - the Brother Kogyo Kabushiki Kaisha Printing Apparatus and Non-Transitory Computer-Readable Recording Medium for Printing Apparatus. This system features a print head with both first type and second type nozzles located on a first direction side with respect to the first type of nozzles, allowing it to perform both traditional printing tasks as well as special effects applications. The controller is configured to perform a variety of ejection controls, including flushing when the print head is in a first state where the second type of nozzles are located at a position corresponding to an ink receiver and the first type of nozzles are located at a position corresponding to the medium range. In addition, this system is able to cause the first type nozzles to eject ink toward the printing medium during a period where ink is ejected from the second type of nozzLES toward an ink receiver when the print head is in the first state. All of these features make this system perfect for high-volume production environments or any application that requires precise control over how your prints look.
The printing apparatus includes a print head with at least first and second type of nozzles. The first ejection control includes a control of performing flushing when the print head is in a first state where the second type of nozzles are located at a position corresponding to an ink receiver and the first type of nozzles are located at a position corresponding to the medium range, and a control of causing the first type nozzles to eject the ink toward the printing medium during a period where the ink is ejected from the second type of nozzles toward the ink receiver when the print head is in the first state.
US Patent 11254133
BROTHER KOGYO KABUSHIKI KAISHA
Liquid Storage Device Provides Smooth Flow of Ink to Inky Printer
What is this invention?
Liquid storage device
There once was a device for storing ink,
It had a tank and an agitation blade.
To supply the inkjet head,
A tube ran instead of led,
And its lower end portion just barely sagged.
In today's world, there is no shortage of devices that need to store liquid. From ink for printers to paint for artists, a storage device is essential for keeping these substances at the right temperature and pressure. One of the most popular storage devices on the market is the BROTHER Liquid Storage Device. This device includes a tank, an agitation blade, and a first tube - all of which are specially designed to supply ink to an inkjet head. Thanks to its innovative design, this device is perfect for applications where you need to store large quantities of liquid without having to worry about them spilling or coming into contact with other chemicals.
This liquid storage device includes a tank, an agitation blade, and a first tube. The tank is configured to store ink to be supplied to an inkjet head. The agitation blade is disposed inside the tank, and is configured to agitate the ink stored in the tank. The first tube is configured to supply the ink stored in the tank to the inkjet head. A lower end portion of the first tube extends in a direction different to the downward direction.
US Patent 11254138
Brother Kogyo Kabushiki Kaisha
Liquid Discharge Head Includes: First and Second Common Channels Extending in a First Direction; and Individual Channels Including Pressure Chambers a
What is this invention?
Liquid discharge head
There once was a liquid discharge head
That included first and second common channels
And individual channels with pressure chambers and nozzles
Each channel had a supply portion, descender portion, and return portion
The return portion included a throttle portion and wide part
Each nozzle overlapped with the wide part
Liquid discharge heads are essential for many industrial applications, and today we're introducing the Brother Kogyo Kabushiki Kaisha Liquid Discharge Head. This device includes first and second common channels that extend in a first direction, and individual channels that include pressure chambers and nozzles. Each nozzle overlaps with the wide portion, so you can achieve high flow rates while maintaining accuracy. Additionally, a relationship of L2>L1 is satisfied - meaning that L1 is a distance in the third direction from a center of each nozzle to a throttle starting position, while L2 is a distance in the third direction passing through a center in a cross section of the descender portion and ranging from a center line parallel to the second direction to the center of each nozzle. So whether you're welding large pieces or delicate parts, this liquid discharge head will help you achieve great results without any hassle.
The liquid discharge head includes first and second common channels extending in a first direction, and individual channels including pressure chambers and nozzles. Each of the individual channels includes a supply portion, a descender portion extending in a second direction, and a return portion extending in a third direction. The return portion includes a throttle portion and a wide portion. Each of the nozzles overlaps with the wide part. A relationship of L2>L1 is satisfied, wherein L1 is distance in the third direction from a center of each nozzle to throttle starting position, and L2 is distance in the third direction passing through center in cross section of descenderportion and ranging from center line parallel to seconddirection to center of each nozzle.
US Patent 11254140

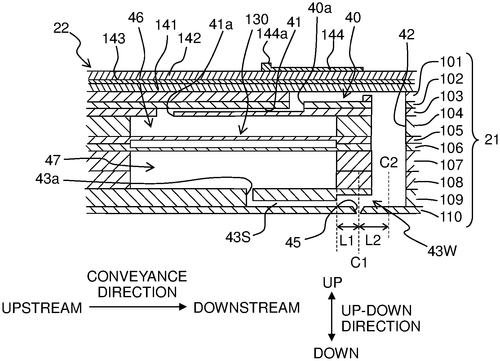

BROTHER KOGYO KABUSHIKI KAISHA
New Cassette Tape Allows You to Control What's on the Other Side
What is this invention?
Tape cassette
There once was a cassette tape
That came in a box-shaped case.
It had a bottom wall, top wall,
And side wall with corner portions galore.
The tape was contained within
With two cavities at its opposite ends.
The side face indicator portion
Was a switch hole or surface, depending on the type of tape.

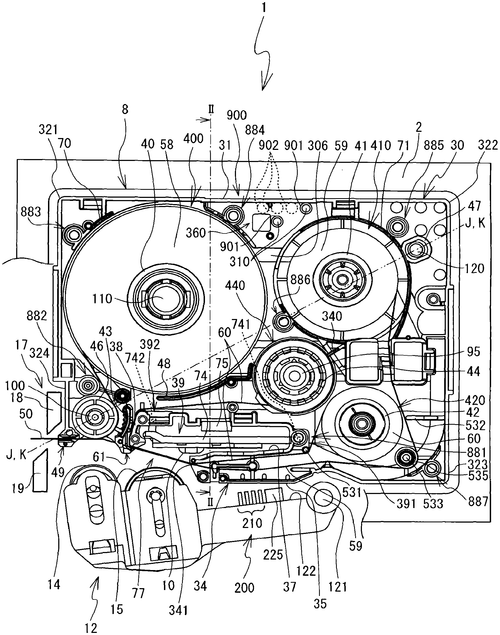

Do you ever get tired of having to remember which cassette your listening to on your Walkman? Well, with the new BROTHER KOGYO KABUSHIKI KAISHA Tape Cassette, that problem is a thing of the past! This innovative cassette includes a box-shaped case with an outline defined by a bottom wall, top wall, and side wall. The tape containment area is located within this outline - making it easy to find whatever tape you're looking for. Plus, the side face indicator portion provides quick and easy access to information about the type of tape being played. Whether you're in the car or at home, this cassette will make listening to your favorite tunes simple and straightforward.
The tape cassette includes a box-shaped cassette case with an outline that is defined by a bottom wall, a top wall, and a side wall. The outline includes a plurality of corner portions, at least one tape contained within a tape containment area within the outline, and two cavities extending from the bottom wall and being provided between the tape containment area and the outline at opposite ends of a diagonal line connecting one of the corner portions to another of the corner portions. The side face indicator portion is provided in the side wall, and includes a plurality of indicator portions disposed in a pattern in accordance with the type of the tape. Each of the indicator portions is either a switch hole or surface portion.
US Patent 11254149
Hyundai Motor Company
A Vehicle Height Control Apparatus Considering a Strong Wind Traveling Situation
What is this invention?
Vehicle height control apparatus and method considering strong wind traveling situation
There once was a car with some height,
Its wind zone determining unit quite tight.
When strong winds came along,
The vehicle stayed strong,
Thanks to its control signal generating unit's might.

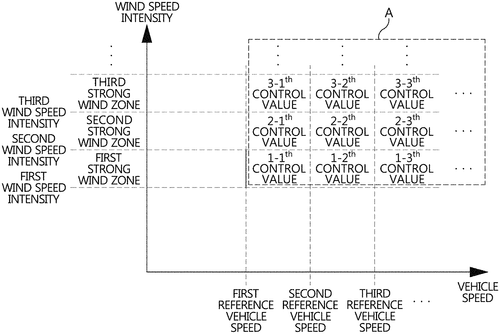

With the ever-changing weather conditions, it's important for drivers to be able to adjust their vehicle height in order to stay safe on the roads. Unfortunately, many vehicles don't have this ability - which can lead to dangerous situations when strong winds are blowing.The Vehicle Height Control Apparatus and Method Considering a Strong Wind Traveling Situation developed by Hyundai Motor Company is designed to solve this problem. This system uses wind speed information obtained from a map to determine whether or not a strong wind zone exists, and then generates control signals for a vehicle height adjusting device accordingly. By taking these precautions before bad weather hits, you can ensure that you're always safe while on the road.
The vehicle height control apparatus may include a strong wind zone determining unit for obtaining wind speed information of a current position by using map information to which the wind speed information is corresponded and current position information of a vehicle, and generating strong wind zone information by comparing the obtained wind speed information with a predetermined reference wind speed to determine a strongwind zone. The strong wind traveling situation determining unit may generate strong wind traveling situation information by determining the strong Wind traveling situation based on the strong wind zone information and the vehicle speed information of the current position. And,the control signal generating unit may generate a control signal of a vehicle height adjusting device according to the strong Wind traveling situation information.
US Patent 11254179
Hyundai Motor Company
Cover Module Keeps Electric Vehicle Charging Port Hidden
What is this invention?
Cover module of charging port for electric vehicle
There once was a cover module for an electric car,
Which had a panel coupling body and was quite bizarre.
The charging housing was fixed to the inner panel,
And the side outer was coupled to face it as well.
This maintained the mounting hole that they did form,
And the cover main body corresponded in shape.
It had hooks along its edge to cover the hole,
And so it was coupled to the panel coupling body.
As electric vehicles become more and more popular, the need for a charging port becomes even more important. That's where the Cover module of Hyundai Motor Company comes in - it's a cover module that attaches to an electric vehicle's charging port, ensuring that your charging cable stays tidy and out of the way. Not only does this cover module help keep your charging area clean, but it also ensures that your electric car charges quickly and easily.
The cover module of a charging port for an electric vehicle includes a panel coupling body comprising a charging housing fixed to an inner panel of a vehicle body of the electric vehicle to form a mounting hole, and a side outer coupled to face the inner panel fixed to the charging housing so that the mounting hole formed by the charging housing and the inner panel is maintained. The cover main body is formed in a shape corresponding to the mounting hole, and provided with a plurality of hooks along an edge thereof to cover the mounting hole. The cover module is coupled to the panel coupling body by the hooks.
US Patent 11254228
Ford Global Technologies, LLC
Seat Detects Movement and Status
What is this invention?
Occupant position detection with active electric field sensor
There once was an assembly of seats,
With electrodes all in a row.
The master electrode had a field
That was greater than the others', so it could yield
Data on occupant movement, which the vehicle then knows.
Ford has developed a new occupant position detection system that uses an active electric field sensor to detect when someone is sitting in their seat. By using this technology, Ford is able to identify when someone is seated and generate movement data indicative of the first status of the seat. This information can then be used by the vehicle's control system to provide optimal performance for the driver.
The vehicle seating assembly includes a seat with an array of at least two electrodes arranged in the back. The master electrode has an electric field being greater than the electric fields of each of the other electrodes within the array to detect a total change in capacitance from the array. The controller is responsive to a change in capacitance calculated from the master electrode being greater than a first threshold and each of the other electrodes in the array being greater than a second threshold and outputs occupant movement data indicative of a first status of the seat to the vehicle control sub-system.
US Patent 11254238
FORD GLOBAL TECHNOLOGIES, LLC
New Seat Assembly Allows for More Comfortable Driving
What is this invention?
Seat assembly with pivotable armrest
There once was a seat assembly for a car
That had an armrest and a deformable member
The armrest had an upper extension
And the lower one went down to the floor
The deformable member was relative to the seat frame
Seat assemblies are a common fixture in vehicles, and they play an important role in keeping you comfortable while you're on the road. With today's invention from Ford Global Technologies, LLC, we've taken things to the next level by introducing a seat assembly that features a pivotable armrest - perfect for accommodating different body types. Not only is this new design more comfortable than ever before, but it also allows for greater flexibility when it comes to seating arrangements. So if you're looking for an upgrade on your current vehicle seat, look no further than the Seat assembly with pivotable armrest from Ford Global Technologies, LLC!
The patent describes a seat assembly for a vehicle, including an armrest and a deformable member between the armrest and the seat frame. The armrest includes an upper extension extending upwardly from the hinge and a lower extension extending downwardly from the hinge. The deformable member is deformable relative to the seat frame and the armrest.
US Patent 11254248
Ford Global Technologies, LLC
Assist Handle Assembly Comes with Tool to Help Keep It Secure
What is this invention?
Vehicle assist handle assembly having a stored assembly tool
There once was a tool for assembly
That was stored in a compartment so nifty
With a key surface to help with engagement
It made connecting components quite snifty!
Vehicle assist handle assemblies have become increasingly popular in recent years, as they provide a convenient way to help drivers with tasks such as opening doors and getting in and out of their cars. Ford Global Technologies, LLC has developed an innovative assembly system for these handles that makes them even easier to use - by storing the assembly tool inside the handle itself! This means that you never need to worry about losing it - or having to search through your car for it when you need it.
The assembly tool is stored in the storage compartment, which makes it easy to assemble and disassemble the connector. The fastener has a key surface that can be engaged by the assembly tool, which makes it easier to secure the connector to the structural component of the vehicle.
US Patent 11254252
HYUNDAI MOTOR COMPANY
Keep your drivers safe with a system that controls headlamps
What is this invention?
System and method of controlling a vehicular headlamp for preventing a shadow area
There once was a system for a car
That controlled its headlamp from afar
When it sensed the high beam was lit
It would check if there was a shadow in front of it
And adjust the motor to prevent any glare.
Vehicles today come equipped with a variety of features to make driving safer and more efficient. One such feature is a headlamp that can be used to prevent a shadow area between the low beam and high beam of the headlight. This system, invented by Hyundai Motor Company, uses a camera unit to periodically determine whether the high beam is lit or illuminated, and then adjusts the level of the leveling motor accordingly. If it detects that a darkness cell has formed in front image data from the camera unit, it will change the motor level up by 1 step and store this number for future use. If no darkness cell is detected, it will keep the current motor level unchanged.
The system and method control a vehicular headlamp for preventing a shadow area between a low beam and a high beam of the headlamp. The method includes periodically determining whether a high beam of the vehicular headlamp is lit or illuminated. Upon determining that the high beam is illuminated, the method includes determining whether a darkness cell is formed in front image data of the vehicle, which is transmitted from a camera unit. Upon determining that the darkness cell is formed, the method includes changing a leveling motor to be directed upward by 1 step and storing a changed number of steps. Upon determining that the darkness cell is not formed, the method includes driving the leveling motor by the pre-stored number of steps.
US Patent 11254257
Hyundai Motor Company
Mount an Undercover Body with This Vehicle Undercover Mounting Bracket
What is this invention?
Vehicle undercover mounting bracket and vehicle undercover assembly having the same
There once was a bracket for mounting
That could be used for an undercover body.
It had a frame-side portion
And an undercover-side portion,
And they were connected by a connecting portion.
With the harsh realities of trucking on the rise, it's more important than ever to have a secure way to mount your undercover body. The Vehicle Undercover Mounting Bracket from Hyundai Motor Company is just what you need - it includes a frame-side mounting portion mounted on a side rail of your truck frame, an undercover-side mounting portion mounted on the undercover body, and a connecting portion that connects the two components. This makes installation quick and easy, and ensures that your undercover body is always in place no matter what happens on the road.
The vehicle undercover mounting bracket is designed to mount an undercover body on a truck frame. The bracket includes a frame-side mounting portion mounted on the side rail of the truck frame, an undercover-side mounting portion mounted on the undercover body and spaced apart from the frame-side mounting portion in a longitudinal direction of the side rail, and a connecting portion which extends in the longitudinal direction of the side rail and connects the frame-side mounting portion and the undercover-side mounting portion.
US Patent 11254267
HYUNDAI MOTOR COMPANY
An apparatus keeps your car from being stolen
What is this invention?
Apparatus for preventing forcible separation of shift cable
There once was an apparatus made
To keep a shift cable from being forcibly separated
With a cover member and shifting device in place
The lever housing and shift lever wouldn't let the current gear change go out of place
And so theft of the vehicle would be prevented with this great ace
With the rise in car theft, it is more important than ever to find ways to prevent unauthorized access to your vehicle. One such way is through the use of shift cables - devices that connect a gearbox (usually found in a car's engine) to the drivetrain. Unfortunately, these cables can be easily removed and stolen, making them an attractive target for thieves.Fortunately, Hyundai has developed an ingenious solution: an apparatus that inhibits forcible separation of the cable between the gearbox and the drivetrain. This prevents anyone from changing gears without your permission - meaning they would have to break into your car in order to steal it! Not only does this safeguard your vehicle, but it also helps protect you should someone attempt to steal it while you're driving.
The patent describes an apparatus that can help prevent forcible separation of a shift cable 100 coupled to a shift lever 220 by a cover member 300 combined with a shifting device 200 which includes a shift lever housing 210 and the shift lever 220, thereby preventing forcible changing of a current gear from P-stage to N-stage. This could help prevent theft of the vehicle.
US Patent 11254285
FORD GLOBAL TECHNOLOGIES, LLC
Wiper Blade Heaters Keep Blades Warmer on Cold Winter Days
What is this invention?
Heated wipers for motor vehicles
There once was a car with a wiper
Whose blade had a heater inside her
When the current was high
The blade would get nigh
And clear off any snow or slush, sir!
With the colder months upon us, it's important to keep your windshield clean and clear - especially in cold weather conditions. One way to do this is by using heated wipers. Heated wipers for motor vehicles were invented by Ford Global Technologies, LLC, and they work by heating up the wiper blades so that they can effectively clean your windshield in cold weather conditions. By regulating the temperature of the blade with a thermally conductive polymer heater element, you can ensure that your windshield stays clean while driving in any weather condition.
This disclosure details motor vehicle wiper systems and associated methods for heating wiper blades of the wiper systems. In exemplary embodiments, a wiper blade of a wiper may include a beam blade portion, a tip portion, and a heater element. Each of the beam blade portion, the tip portion, and the heater element may include a different material composition. The material composition of the heater element, for example, may include a thermally conductive polymer. The temperature of the blade may be regulated by adjusting current flow through the thermally conductive polymer heater element. This allows for more accurate control over how warm or cool the blade will be during operation.
US Patent 11254291
Ford Global Technologies, LLC
Improving Hybrid Vehicle Driveline Operation with Margin Torque Adjustment
What is this invention?
Systems and methods for operating a torque converter clutch
There once was a way to adjust the margin torque
For closing a torque converter clutch in response
To various states of engine operation-
This can help improve overall hybrid vehicle driveline performance!
The torque converter clutch is one of the most important components on a hybrid vehicle - it allows the engine and transmission to share power, and it's responsible for transferring energy from the engine to the drive wheels. Unfortunately, this component can often become sluggish in response to changes in engine operation - which can lead to degraded performance and increased fuel consumption. Ford Global Technologies, LLC has developed a system that uses margin torque adjustment to improve operation of this vital component. By adjusting the amount of torque required to close the clutch based on how busy the engine is currently operating, we are able to maintain consistent performance under all circumstances. This not only improves overall driveline efficiency, but it also reduces fuel consumption by keeping our engines running at their peak capacity.
The systems and methods described herein provide a way to adjust the margin torque for closing a torque converter clutch in response to various states of engine operation. This can help improve overall hybrid vehicle driveline performance.
US Patent 11254297
Hyundai Motor Company
Control Gears to Save Gasoline
What is this invention?
Hybrid vehicle and method of controlling gear shifting for the same
There once was a way to control gear,
In a hybrid vehicle, with no fear.
You just had to predict
The amount of torque reduction,
And then determine whether to use counter-torque.
Hyundai has come up with a new way of controlling gear shifting in hybrid vehicles, and it could revolutionize the way we drive. Called "Operating Point Correction," this system allows for increased torque reduction when gears are requested - without having to sacrifice efficiency. This means you'll be able to shift more quickly and with less effort, which is great news for drivers who want to get their jobs done as efficiently as possible. Plus, by improving efficiency during gear shifts, you can save on fuel costs over the long term.
The patent describes a method of controlling gear shifting in a hybrid vehicle. The method includes predicting a requested torque reduction amount, determining whether to realize the predicted requested torque reduction amount by reducing motor torque or applying counter torque, as a result of the determining, when it is not possible to realize the predicted requested torque reduction amount, determining an operating point correction amount for increasing an available torque reduction amount of the motor, and determining whether to perform first gear-shifting control in consideration of efficiency of the first gear-shifting control of increasing the motor torque and reducing engine torque by the operating point correction amount before an actual requested torque reduction amount is input.
US Patent 11254303
HYUNDAI MOTOR COMPANY
Parking Control with a Reference Line
What is this invention?
Apparatus for controlling parking of a vehicle, a system having the same, and a method thereof
There once was a car that could park itself
With the help of a processor and some software
It would recognize a parking line
Or an object in a space
And align the car accordingly without any fuss
Parking has always been a hassle - but now there's an easier way to do it. Hyundai Motor Company has developed a system that can control your vehicle's parking, no matter where you are. With this system, you can rest assured that your car will be in the right spot when you get out to drive it home at the end of the day.The system works by recognizing parking lines or objects in a parking place, and generating a reference line based on those landmarks. Next, the system aligns your car with the reference line and uses that information to generate an expected driving path for a search for a parking place. Once you've found one that looks good, the system automatically searches for it while you're driving - so there's never any need to worry about getting lost while trying to find a spot. And best of all: because this technology is built into your car itself, there's no need for extra hardware or complicated setups - just go ahead and park wherever you want!
The invention provides an apparatus, a system including the apparatus, and a control method thereof for controlling parking of a vehicle. The apparatus includes a processor that recognizes a parking line or an object in a parking place, generates a reference line based on the parking line or the object, aligns the vehicle subject to the parking control based on the reference line, generates an expected driving path for a search for a parking place, and automatically searches for the parking place while the vehicle travels based on the expected driving path and storage that stores parking place information searched by the processor.
US Patent 11254305
Hyundai Motor Company
Cruise Control for an Eco-Friendly Vehicle
What is this invention?
Cruise control system and method for vehicle
A cruise control system is great
For when you want to save on gas
It can help you drive more efficiently
And help reduce your carbon footprint
So go ahead and give it a try
You might be surprised at how well it can fly!
Cruise control has become a standard feature on many vehicles, and for good reason. It helps to conserve fuel by limiting the speed at which the vehicle is driven. But what about those times when you want to take your car out for a drive but don't want to waste any gas? Hyundai has come up with a new cruise control system that allows you to switch between different operation modes - including an eco mode that prioritizes fuel consumption reduction over all else. This means that even if you're not in a rush, you can still get the most out of your ride by switching to eco mode and letting the controller do its job.
A cruise control system is capable of determining, by a controller, whether the vehicle is in a cruise mode-on state; determining, by the controller, an operation mode of the vehicle selected by a driver; and when it is determined that the vehicle is in the cruise mode-on state, performing, by the controller, cruise control of the vehicle for the operation mode selected by the driver. The operation mode includes an eco mode which performs driving control prioritizing fuel consumption reduction.
US Patent 11254309
HYUNDAI MOTOR COMPANY
Vehicle Autonomous Driving Control Apparatus Learns Your Driving Habits Quickly
What is this invention?
Apparatus for controlling autonomous driving of vehicle, system including the same and method for the same
There once was a car that could drive itself
With a processor that knew just what to do
It would adjust the control band
To match the target acceleration and deceleration
All based on a driving pattern learning result stored in its memory
The control band is a key component of autonomous driving, and it's essential for ensuring that the vehicle responds quickly and accurately to the driver's commands. With this new system from Hyundai Motor Company, you can store driving pattern learning results in storage, so you can use them to improve your control over the vehicle in future sessions. This way, you can keep getting better and faster at responding to your passengers' needs - without ever having to learn all over again!
The vehicle autonomous driving control apparatus includes a processor that adjusts a control band for controlling an acceleration and deceleration of the vehicle, based on a target acceleration and deceleration and an acceleration/deceleration response stage which sets a speed of responsiveness of the acceleration and deceleration of the vehicle to follow the target acceleration and deceleration. The storage stores a driving pattern learning result calculated by the processor, the target acceleration and deceleration, and the control band.
US Patent 11254310
FORD GLOBAL TECHNOLOGIES, LLC
Autonomous Vehicle Maneuvers Disclosed - Stay Safe on the Road!
What is this invention?
Methods and apparatus to present anticipated vehicle maneuvers to a passenger
There once was a car that drove itself
Which some found quite alarming
But it knew all the maneuvers
And so it would often surprise us
With how well it could keep us from harming
With the ever-growing popularity of autonomous vehicles, it is important that we are able to provide our passengers with accurate and up-to-date information about the vehicle's anticipated movements. Ford Global Technologies has developed a system that does just this - by allowing us to predict the vehicle's next move before it happens. By taking into account all of the data collected while the car is operating autonomously, we are able to present our passengers with an accurate prediction of what will happen next. Whether you're looking for directions home or just want to be kept in the loop on your ride, Ford Global Technologies has you covered!
The patent describes methods and apparatus for presenting anticipated vehicle maneuvers to a passenger. The collected information may correspond to autonomous operation of the vehicle, and the notification type may be based on the device type. The user may then be presented with the anticipated maneuver via the passenger device.
US Patent 11254327
Hyundai Motor Company
Vehicle Body Joint Structure Lets You Drive With Both Feet Free
What is this invention?
Vehicle body joint structure
There once was a vehicle body joint
That included a lower panel point
The upper panel extended
To the roof assembly, it blended
And the connection pipe vertically jointed
Vehicle body joint structures are essential for keeping your vehicle in good condition. They provide a connection between the floor and roof assemblies, which helps keep the entire vehicle structure sturdy. The Hyundai Vehicle Body Joint Structure is unique in that it includes a lower panel that is disposed on a side surface of the floor assembly - making installation and removal much easier. Additionally, the upper panel extends upward from the lower panel, connecting to the roof assembly for a roof of your car. This allows you to customize your vehicle's look without having to remove or replace any parts!
This article discusses a vehicle body joint structure, which includes a lower panel disposed on a side surface of a floor assembly, an upper panel extending upward from the lower panel and connected to a roof assembly for a roof of the vehicle body. The connection pipe extends vertically to connect the floor assembly to the roof assembly, disposed to face the upper panel.
US Patent 11254366
Ford Global Technologies, LLC
Scaling up your car's front end assembly
What is this invention?
Motor vehicle with scalable front end assembly
There once was a front end assembly
That was meant for motor vehicles
But it just wasn't scalable
Or durable, or reliable
So the method was quickly improved!
Today we are introducing a new front end assembly for motor vehicles - one that is scalable and easy to use. The Motor Vehicle with Scalable Front End Assembly from Ford Global Technologies, LLC includes two front cross members that overlap each other, making it perfect for larger vehicles. With this assembly you no longer have to worry about fitting it correctly - the design is already pre-determined and simply needs to be assembled. Plus, thanks to its modular design, this assembly can be adapted to any size vehicle without requiring extensive modifications or additional pieces. So whether you're looking for an upgrade or a new addition to your fleet, the Motor Vehicle with Scalable Front End Assembly from Ford Global Technologies, LLC is sure to meet your needs.
The disclosure relates to a scalable front end assembly for a motor vehicle. The example front end assembly includes a first component and a second component. The first component includes a first front cross member and the second component includes a second front cross member. The first front cross member overlaps the second front cross member. A method is also disclosed.The disclosure may provide an efficient way to create a scalable, durable, and reliable assembly for motor vehicles.
US Patent 11254367
HYUNDAI MOTOR COMPANY
The Easiest Way to Secure Assemblability of Elements Including Pillars
What is this invention?
Vehicle body joint structure
There once was a car company called Ford
Who decided to switch up their bored
Modular design, they did say
Would be more fun and less gray
Now we can all drive a la carte!
HYUNDAI MOTOR COMPANY has invented a new vehicle body joint structure that is capable of securing assemblability of elements including the pillars while achieving enhancement in strength and rigidity. This innovative design makes it easier than ever before to share components between different types and designs of vehicles, which ultimately leads to a stronger, more durable product. Thanks HYUNDAI MOTOR COMPANY!
A vehicle body joint structure is disclosed that is configured such that elements configured to connect pillars of a vehicle body can be easily shared by various kinds and designs of vehicles, thereby being capable of securing assemblability of elements including the pillars while achieving enhancement in strength and rigidity. This allows for a more modular approach to designing and manufacturing vehicles, which in turn results in increased efficiency and cost savings.
US Patent 11254369
The Boeing Company
New Foldable Wing Tips Have Aerodynamic Devices
What is this invention?
Foldable raked wing tips having aerodynamic devices
There once was a wingtip that folded
With aerodynamic devices it was equipped
The hinge between the fixed and folding portions
Ensured that it could fold with great ease and caution
We've all seen those incredible wings on planes - the ones that look like they could fly without any help at all. But how do they work? The answer is surprisingly complex, and it starts with Foldable raked wing tips.Foldable raked wing tips are a new type of wing design that has been proven to be incredibly efficient in the air. Thanks to their aerodynamic devices, these tips can create lift even when they're folded up, which means you can take advantage of less space on your aircraft and save weight in the process. Not only that, but Foldable raked wingtips also have a natural tendency to stay level in flight - no need for pesky stabilizers or other artificial assistance!
A foldable raked wing tip is disclosed that includes aerodynamic devices. The wingtip can be folded relative to the fixed portion, which allows for a more compact and streamlined design. Additionally, the hinge between the fixed and folding portions enables the wingtip to fold quickly and easily.
US Patent 11254412
THE BOEING COMPANY
Wing Strut System Keeps Aircraft Flying Straight
What is this invention?
Spatially staggered jury strut system
There once was an aircraft's wing
That needed some extra support.
So they added a strut,
And two jury struts, but
Forgot to add any sort!
With a new strut system from THE BOEING COMPANY, you can now achieve increased stability and performance for your aircraft wings. This system includes a strut member that extends from the wing and a first jury strut assembly that is associated with the wing. The first jury strut assembly includes a first jury strut - which has two ends connected to the strut member - and a second jury strut, which also has two ends connected to the strut member. These ends are spaced apart in a direction of the chord of the wing, giving you increased stability while flying.
This strut system for a wing of an aircraft includes a strut member extending from the wing and a first jury strut assembly associated with the wing. The first jury strut assembly includes a first jury strut, which has a first end connected to the strut member and a second jury strut, which has a first end connected to the strut member. The second end of the first jury strut and the second end of the second jury strut are each connected to the wing spaced apart from one another in a direction of a chord. This allows for more efficient movement of the structure along its length, while also providing support in areas where it is most needed.
US Patent 11254413
