Most innovative companies for 12/06/2022 (new inventions)
Exciting new inventions from The Boeing Company, Canon Kabushiki Kaisha, Ford Global Technologies, Llc, Hyundai Motor Company And Airbus Operations Gmbh
This is a weekly article summarizing a handful of inventions from the most innovative companies in the world. The summaries are created by an A.I. and proof-read by a human before publication. Attempts are made to ensure accuracy of the descriptions, but it is very much a work in progress. Each invention description is preceeded by a poem about the invention that is written by the A.I. I have found the limerick is actually quite good at explaining the invention in simple terms. Enjoy!

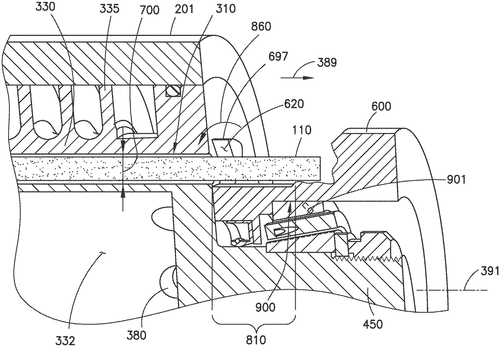

The Boeing Company
Extruding Material with Nozzle Heat Transfer in a Radiator
What is this invention?
Extruding nozzle, system, and method therefor
A method for pelletizing was found
By an extruding nozzle around town
The material flowed through channels, heated by a radiator
For improved performance, that's what they'd factor
It's the best way to improve pelletization sound!
The Boeing Company has developed an innovative new extruding nozzle that is perfect for pelletizing extruded materials. This revolutionary system features a radiator located within the housing of the nozzle, which allows heat to be transferred between the extruded material flowing through it and the radiator itself. The result? Extrusion processes are faster and more efficient than ever before! This technology can be used in a variety of applications, including 3D printing, injection molding, and other industrial manufacturing processes. With its easy-to-use design and superior performance capabilities, this extruding nozzle from The Boeing Company is sure to revolutionize how we create products using these methods.
The patent describes a method for pelletizing an extruded material with an extruding nozzle. The extruded material flows through at least one material-flow channel, and is heated by the radiator located within the housing of the extruding nozzle. This allows for efficient transfer of heat between the extruded material and the radiator, resulting in improved pelletization performance.
US Patent 11517866
Canon Kabushiki Kaisha
Liquid Discharge Apparatus Includes Suction Unit to Suck Cap Through Fluid Passage
What is this invention?
Liquid discharge apparatus, imprint apparatus, and method
A liquid discharge apparatus found
With a cap, suction and filter around
When the negative pressure stops
Open/close unit pops
And discharges the liquid abound
Canon Kabushiki Kaisha has just unveiled their latest innovation: a liquid discharge apparatus. This revolutionary new device is designed to make the process of discharging liquids much easier and more efficient. The apparatus includes a discharge head, cap, suction unit, open/close unit, and filter – all working together to ensure that liquids are discharged in an effective manner. The suction unit works by sucking air out of the interior of the cap while it caps the discharge portion. This creates a negative pressure state which allows for better control over how quickly or slowly liquids are discharged from the device. Additionally, an open/close unit is set in an open state when this negative pressure state is canceled so that no additional air can enter into the system and interfere with its operation. Finally, a filter is arranged within the second fluid passage so as to further optimize performance and reduce any potential contamination issues associated with discharging liquids. This innovative liquid discharge apparatus from Canon Kabushiki Kaisha will be sure to revolutionize how we approach liquid-based tasks across many industries!

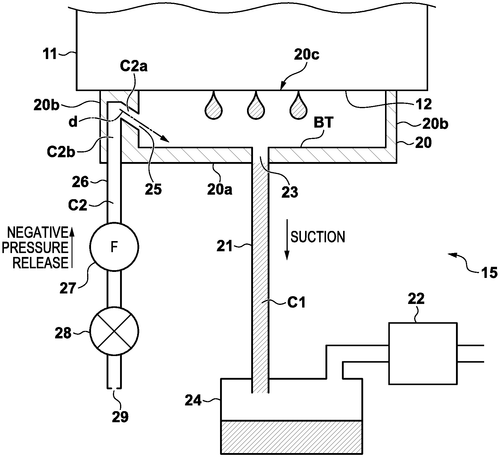

The liquid discharge apparatus includes a discharge head including a discharge portion configured to discharge a liquid, a cap configured to cap the discharge portion, a suction unit configured to suck an interior of the cap through a first fluid passage communicating with the interior of the cap in a state in which the cap caps the discharge portion, an open/close unit configured to open/close a second fluid passage communicating with the interior of the cap, and a filter arranged in the second fluid passage. The open/close unit is set in an open state when a negative pressure state of the interior of the cap, which is generated by suction by the suction unit, is canceled.
US Patent 11517922
Ford Global Technologies, LLC
Aluminum Alloys Produced with Semisolid Method Are More Ductile
What is this invention?
Method for producing a component
A process for making a part
From an aluminum alloy of art,
It must contain less than one point three
Of iron and two tenths of Si,
And be joined to others by riveting smart.
Ford Global Technologies, LLC has just unveiled a revolutionary new method for producing components from aluminum alloys. This method utilizes a semisolid process and results in components with great ductility, allowing them to be joined to other components using self-piercing riveting, flow drilling, high-speed tack setting, friction welding and/or weld riveting. The alloy used contains less than 1.3% by weight of iron and no more than 0.2% by weight of silicon - making it ideal for many different applications across industries such as automotive manufacturing, aerospace engineering and construction projects. This new process is sure to revolutionize the way we produce aluminum components in the future – reducing costs while increasing efficiency and quality control standards at the same time!

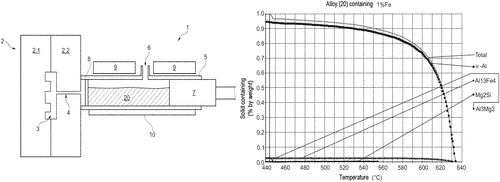

The patent describes a method for producing a component from an aluminum alloy using a semisolid method. The alloy must contain less than 1.3% by weight of iron and no more than 0.2% by weight of silicon, and the component must have sufficient ductility such that it can be joined to other components by self-piercing riveting, flow drilling, high-speed tack setting, friction welding and/or weld riveting.
US Patent 11517960
Hyundai Motor Company
New deburring tool includes blade that protrudes outwardly
What is this invention?
Deburring tool
A deburring tool with a body,
The cutting unit had a blade part free.
It moved when the fluid was injected in,
And it caused the degree to protrude out and begin.
This tool is sure to make your job easy!
Deburring is a tedious and time-consuming process that often requires special tools to achieve the desired result. Hyundai Motor Company has come up with an innovative solution for this problem - their deburring tool. This tool features a body and cutting unit, which includes a blade part. The cutting unit can be moved by injecting fluid into it through the first channel inside the body, allowing the blade part to protrude outwardly and make deburring easier than ever before. This new deburring tool from Hyundai Motor Company makes it possible to complete projects quickly and accurately without having to invest in expensive equipment or spend hours manually filing down edges. It's lightweight, easy to use, and perfect for any project where you need precise results fast!
The deburring tool includes a body, and a cutting unit provided on an end portion of the body. The cutting unit includes a blade part, and a first channel is provided inside the body. When a fluid supplied from outside of the deburring tool through the first channel is injected into the cutting unit and presses the cutting unit, the cutting unit moves and a degree to which the blade part protrudes outwardly increases.
US Patent 11517968
CANON KABUSHIKI KAISHA
New Hot Runner Nozzle Allows for Precise and Smooth Resin Flow
What is this invention?
Hot runner nozzle, injection molding apparatus and manufacturing method of resin molded product
A Hot Runner nozzle with grace,
Will keep molten resin in place.
The cover has two parts,
One on the outer and one on the inner,
So your project can have a good base!
We are excited to announce a new innovation from Canon Kabushiki Kaisha: the Hot Runner Nozzle. This revolutionary device is designed for use in injection molding apparatus and can help revolutionize how you manufacture resin molded products. The nozzle body defines a flow path of molten resin, while the cover member is arranged at the circumference of its tip portion and includes two engagement portions - one on the outer periphery that engages with a mold, and one on the inner periphery that engages with the nozzle body itself. This hot runner nozzle makes it easier than ever before to create precise molds for your projects, no matter what size or shape they may be. Not only does this make production faster and more efficient, but it also allows for greater accuracy when creating intricate designs or shapes. With this technology at your disposal, you can now produce products with perfect precision every time!
This hot runner nozzle includes a body that defines a flow path of molten resin, and a cover member that is arranged around the tip portion of the nozzle. The cover member has two engagement portions - one on the outer periphery and one on the inner periphery. When it is attached to a mold or Hot Runner Nozzle Holder, these engagement portions will help keep everything in place while you're casting or pouring your project.
US Patent 11518075
AIRBUS OPERATIONS GMBH
Laser Joins Non-Transparent Carbon Fiber Reinforced Plastics
What is this invention?
Joining method and machining head and manufacturing machine for carrying out the method
A joining method for two workpieces
Was found to make a strong connection;
The splices were made,
And then laser beams laid,
To form an integrally bonded junction.
We are excited to announce the new joining method and machining head from AIRBUS OPERATIONS GMBH. This revolutionary system allows for thermoplastic workpieces, even those made of non-transparent carbon fiber reinforced plastics, to be joined together using laser welding. The splice is produced at the edge regions of the workpieces and then connecting bodies are inserted into the seam region and heated by a local heat input from a laser beam. This creates an integrally bonded connection between the two pieces that is strong enough to withstand external forces. This innovative joining method makes it easier than ever before to connect thermoplastic parts – no matter what material they’re made out of – together securely, quickly, and efficiently. With this technology in your arsenal, you can create stronger connections with fewer steps than ever before!

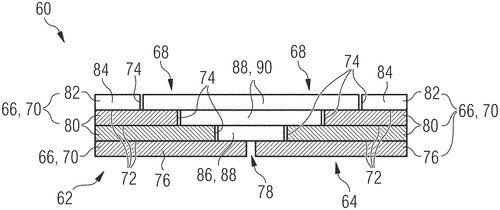

The patent describes a joining method for connecting at least two thermoplastic workpieces. The method involves producing a splice at the edge regions of the workpieces, and positioning them relative to one another in such a manner that the opposite splice regions bound a seam region. Connecting bodies are then inserted into the seam region and heated by means of local heat input by laser beam, forming a fixed integrally bonded connection between the workpieces and the connecting bodies.
US Patent 11518112
The Boeing Company
Reduced Ply Wrinkling with Constrained Creep Forming - Tooling Provides Flexible Cauls
What is this invention?
Constrained creep forming of contoured composite stiffeners
A composite laminate stiffener formed
With constrained creep, no ply wrinkling stormed
Tooling with cauls that constrain
Creep rate to remain low and plain
Relaxation of residual stress is transformed
The Boeing Company has just unveiled a revolutionary new invention that promises to revolutionise the way we form contoured composite stiffeners. This process, known as constrained creep forming, uses flexible cauls which constrain the stiffener during the contour forming process. By carrying out this process at a slow enough rate so that friction or shear resistance between the resin and fibers of the plies remain low, slippage can occur and significant compression stresses are not generated - allowing relaxation of residual stresses in the stiffener.This breakthrough technology means that it is now possible to produce contoured composite stiffeners with reduced ply wrinkling - making them stronger than ever before while still maintaining their lightweight properties. We're excited to see how this innovation will improve our products going forward!
A composite laminate stiffener is formed to contour with reduced ply wrinkling using constrained creep forming. The tooling apparatus is provided with flexible cauls which constrain the stiffener during the contour forming process. The creep forming is carried out at a slow enough rate so that friction or shear resistance between the resin and fibers of the plies remains low enough that slippage can occur and significant compression stresses are not generated rate, allowing relaxation of residual stresses in the stiffener.
US Patent 11518121
Canon Kabushiki Kaisha
New substrate for electrical connections delivers superior performance
What is this invention?
Substrate with electrical connection section, substrate for liquid ejection head and methods of manufacturing the same
A substrate with a connection section,
For liquid ejection heads perfection,
It has wiring and layer,
To prevent diffusion's danger,
And an insulation for outside protection.
Canon Kabushiki Kaisha has developed a revolutionary new substrate with an electrical connection section and a substrate for liquid ejection head. This technology is designed to make establishing electrical connections easier than ever before. The substrate features a wiring layer, diffusion prevention layer, and connection member that work together to create the perfect environment for connecting to an outside source. The insulation layer covers the wiring layer while also exposing it in certain areas, allowing the diffusion prevention layer to be arranged in openings and the connection member to cover its outer peripheral edge. This advanced technology from Canon Kabushiki Kaisha makes it easy for users to establish electrical connections quickly and efficiently without any hassle or difficulty - making complicated tasks much simpler!
A substrate with an electrical connection section or a substrate for liquid ejection head comprises a wiring layer, a diffusion prevention layer laid on the wiring layer and a connection member laid on the diffusion prevention layer for establishing an electrical connection to an outside. An insulation layer having a wiring-layer-exposing opening is arranged on the wiring layer and the diffusion prevention layer is arranged in the opening, while the connection member is arranged on the diffusion prevention layer so as to cover an outer peripheral edge of the diffusion prevention layer.
US Patent 11518164
FORD GLOBAL TECHNOLOGIES, LLC
Vehicle includes a front door and a rear door. A first bracket is fixed to the front door, and a second bracket is fixed to the rear door. A front cab
What is this invention?
Cable reinforcement for vehicle doors
A vehicle with a front and rear door
Had first bracket attached to one floor
The second was then set,
Extending the cable net,
To move with a linear actuator
FORD GLOBAL TECHNOLOGIES, LLC is proud to announce their latest invention: Cable reinforcement for vehicle doors. This system is designed to provide increased strength and durability for the front and rear doors of a vehicle. The system includes two brackets that are fixed to each door, with cables extending from one bracket away from the other along a vehicle-longitudinal axis. Additionally, there is a linear actuator that can be extended from one bracket to the other in order to further reinforce the connection between them. This new invention provides an easy way for people to increase the security of their vehicles without having to resort to more expensive solutions like replacing door components or installing additional locks. We believe this will be especially useful for those who live in areas where car theft is common or who need extra protection when traveling long distances on highways or through rural areas. With this cable reinforcement system installed, you can rest assured knowing your car’s doors are secure and won’t give way easily under pressure!

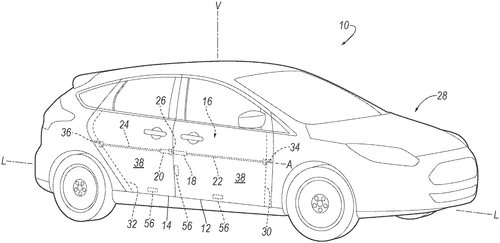

A vehicle includes a front door and a rear door. A first bracket is fixed to the front door, and a second bracket is fixed to the rear door. A front cable extends from the first bracket away from the second bracket along a vehicle-longitudinal axis. A rear cable extends from the second bracket away from the first bracket along the vehicle-longitudinal axis. A linear actuator is fixed to one of the first bracket or the second bracket and is extendable to the other of the first bracket or the second bracket.
US Patent 11518221
HYUNDAI MOTOR COMPANY
NEW POWER TRAIN FOR HYBRID VEHICLES INCLUDES COMPLEX PLANETARY GEAR SET
What is this invention?
Powertrain for hybrid vehicle
A powertrain for hybrids has come,
With a complex planetary gear set done.
Input shaft connected to engine and brakes two,
Motor generator for electricity too.
The output shaft will send power from whence it's spun!
Hyundai Motor Company has just unveiled an incredible new powertrain for hybrid vehicles. This powertrain features a complex planetary gear set, along with an input shaft connected to the engine and a motor generator connected to the first rotary element of the gear set. Additionally, two brakes are installed to be able to fixedly connect various elements of the gear set to a transmission case. Finally, an output shaft is connected directly to the fourth rotary element of this planetary gear system. This revolutionary powertrain from Hyundai Motor Company will make driving hybrid vehicles easier than ever before - allowing drivers more control over their vehicle's performance while still getting all the benefits that come with owning a hybrid car. With its innovative design and powerful components, this new powertrain is sure to revolutionize how we drive in years ahead!
The patent describes a powertrain for a hybrid vehicle. The powertrain includes a complex planetary gear set, an input shaft, a motor generator, first and second brakes, and an output shaft. The planetary gear set includes a first rotary element, a second rotary element, a third rotary element, and a fourth rotary element. The input shaft is connected with the engine and can be selectively connected to the first and the second rotary elements of the planetary gear set. The motor generator is connected to the first rotary element of the planetary gear set and generates electricity when engaged. The first brake is installed to be able to fixedly connect the second rotary element of the planetary gear set to the transmission case. The second brake is installed to be able to fixedly connect the third rotary element of the planetary gear set to the transmission case. Finally, the output shaft is connected with fourth rotor of planet gearset for transmitting power from engine to wheels.
US Patent 11518228
Ford Global Technologies, LLC
Fuel System Delivers Efficient Fuel Delivery for Your Vehicle
What is this invention?
System and method for controlling flow in a fuel recirculation line
There's a fuel system that can be seen,
It has an ejector and valve between,
A pressure sensor to measure the flow,
And the controller helps make it all go,
So your vehicle will always stay clean.

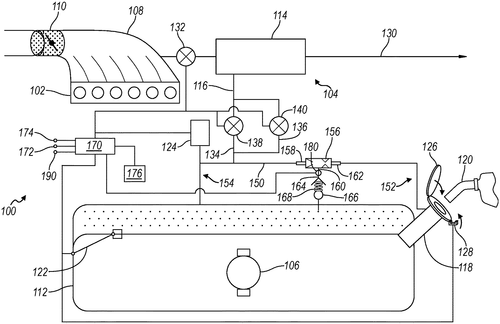

Ford Global Technologies, LLC has just unveiled its latest invention: a system and method for controlling flow in a fuel recirculation line. This revolutionary new system is designed to help make refueling easier and more efficient than ever before. The fuel system features an ejector positioned within the recirculation line, as well as a valve positioned within the drain line connecting the ejector to the fuel tank. A pressure sensor measures pressure associated with this drain line between these two components, allowing for precise control over how much fuel enters the vehicle during refueling events. With this innovative new technology from Ford Global Technologies, LLC you can rest assured that your next fueling experience will be effortless and accurate!
The fuel system, method of fueling a vehicle, and vehicle are provided. The fuel system includes a recirculation line connecting a fuel tank to a fuel fill inlet. An ejector is positioned within the recirculation line, and a valve is positioned within a drain line fluidly connecting the ejector to the fuel tank. A pressure sensor is positioned to measure a pressure associated with the drain line between the ejector and the valve. A controller is in communication with the pressure sensor, and configured to determine a state of the valve based on the pressure.
US Patent 11518238
THE BOEING COMPANY
Renewable Energy Charging Stations Deliver Safe & Fast Charges
What is this invention?
Fast battery charging method and system for large power load applications
A demultiplexer that's so clever
Can separate renewable energy ever and ever
It charges with ease, no need to freeze
At fast rates it can deliver.
The Boeing Company has revolutionized the way we charge our vehicles, including passenger aircraft. Their Fast Battery Charging Method and System for Large Power Load Applications is a groundbreaking technology that uses renewable energy charging stations, systems, and methods to capture, store, and deliver large amounts of renewable electrical energy safely and at low temperatures. This system utilizes charging circuits in communication with a demultiplexer and high-temperature superconducting cables to provide fast charging rates for large power loads such as electric cars or even passenger aircraft! By utilizing this new technology from The Boeing Company, you can now charge your vehicle quickly and efficiently without worrying about safety or temperature issues. Get ready for the future of green energy today!
The disclosure provides charging stations for capturing and storing large amounts of renewable electrical energy from a renewable energy source, such as solar or wind power. The charging stations are in communication with a demultiplexer that separates the renewable electrical energy into smaller quantities for delivery to vehicles. The charging stations also include high-temperature superconducting cables to deliver required large electrical charges at fast charging rates safely and at low temperatures.
US Patent 11518260
FORD GLOBAL TECHNOLOGIES, LLC
Delivery Vehicle with Interchangeable Doors Keeps Your Stuff Safe
What is this invention?
Delivery vehicle with flexible storage
A vehicle with compartments so tall,
It had doors that were interchangeable.
The latching assembly helped keep the wall still,
When one of the doors closed at will.
The hinge and wiper assembly made it all real,
For a single compartment to reveal!
Introducing the latest innovation from FORD GLOBAL TECHNOLOGIES, LLC - a delivery vehicle with flexible storage. This revolutionary new design features separate compartments that can easily be combined into one single compartment by simply moving the sidewall when the doors are open. The latching assembly between the doors and sidewall ensures that movement of the sidewall is limited when only one door is closed, while a contact and wiper assembly carries power and commands for controlling the hinge assembly. This new design makes it easier than ever to transport goods and materials over long distances without having to worry about space constraints or safety issues. With its advanced technology and innovative design, this delivery vehicle will revolutionize how businesses deliver their products in an efficient and cost-effective manner.
The delivery vehicle has separate compartments with a common sidewall. Doors that are interchangeable between the compartments close the compartments. A latching assembly between the doors and sidewall limits movement of the sidewall when only one of the doors is closed. The compartments are combined into a single compartment by moving the sidewall when the doors are open. A hinge assembly connects the doors. A contact and wiper assembly between the doors carries power and commands for the hinge assembly.
US Patent 11518291
Ford Global Technologies, LLC
Cargo Securement Device Enables Seating in Stadium Position
What is this invention?

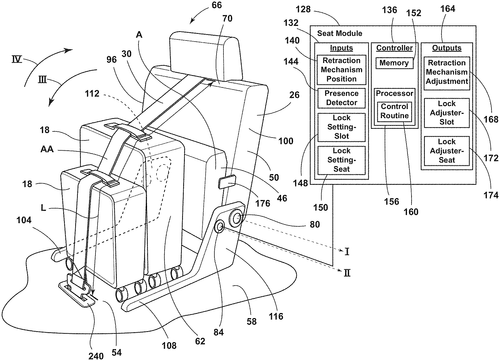

Retention device for vehicle seat
A vehicle that's quite advanced
Has a seat that can adjust and enhance
The retention device binds
Cargo to the floor behind
So you'll never need worry or tense
Ford Global Technologies, LLC has just released a new invention that is sure to revolutionize the way we transport cargo in our vehicles. The Retention Device for Vehicle Seat allows you to create an enclosure between your vehicle seat and floor area, allowing you to securely store items while keeping them out of sight. This device can be easily positioned in either a stored or cargo storage position, and the seat can be moved into either seating or stadium positions. With this device, it's never been easier to keep your car clean and organized! So if you're looking for a simple solution for transporting cargo without sacrificing space or comfort, look no further than Ford Global Technologies' Retention Device for Vehicle Seat - the perfect addition to any vehicle!
The vehicle includes a seating assembly attached to the interior of the vehicle. The seat is rotatably adjustable relative to the seatback and can be in one of two positions, a seating position and a stadium position. The retention device extends between the seatback and floor area adjacent to the seating assembly, defining an enclosure that can secure cargo to both the floor and seat.
US Patent 11518296
FORD GLOBAL TECHNOLOGIES, LLC
Holographic projection system and method activated by proximity to vehicle
What is this invention?
Holographic projection system and method for a vehicle
A vehicle's projection device,
In combination with a misty breeze,
Can project an image so clear,
For passengers to cheer.
An immersive experience for sure to please!
We are excited to announce the latest innovation from FORD GLOBAL TECHNOLOGIES, LLC: a holographic projection system and method for vehicles. This cutting-edge technology is designed to detect when a user is nearby and then activate both a water mist generating device and a projection device in order to project an image onto the mist. The result? An immersive 3D experience that brings your car's interior to life! Not only does this technology offer amazing visuals, but it also provides enhanced safety features as well. By detecting users' proximity, drivers can be alerted of any potential hazards before they even enter their vehicle - making driving smarter than ever before. FORD GLOBAL TECHNOLOGIES, LLC has revolutionized the automotive industry with this incredible new invention - bringing us one step closer to having cars that truly feel like our own personal spaces. We can't wait to see what other innovations come out of this company in the future!
The patent describes a holographic projection system and method that are implemented by a projection device provided on the vehicle, a water mist generating device for generating water mist provided on the vehicle, and a controller in communication with the projection device and the water mist generating device. The controller is configured to detect a signal of user proximity to the vehicle, and activate the water mist generating device and the projection device respectively based on the detected signal. This allows for an image to be projected onto the water mist, providing an immersive experience for passengers.
US Patent 11518299
Ford Global Technologies, LLC
Vehicle Supports Include Indentations and Extensions to Create Pockets
What is this invention?
Multi-panel platform support for pick-up truck bed
A vehicle with a two-panel bed,
Had indentations from cab to tailgate instead.
The lower panel had extensions that filled the depressions,
Providing extra support for large objects and possessions.
No need for straps or tie-downs when those pockets are found!
Are you looking for a way to make your pick-up truck bed more versatile? Ford Global Technologies, LLC has just the solution with their Multi-panel platform support. This two-panel system consists of an upper panel and lower panel that fit between the truck bed and cab. The upper panel features multiple indentations from cab side to tailgate side, while the lower panel includes extensions that extend into one or more of these indentations. Together, they create pockets in which platforms, boards, or other support structures can be placed - allowing you to create a larger platform like a piece of plywood across the entire length of your truck bed. With this innovative new technology from Ford Global Technologies, LLC you can easily customize your pick up truck bed for any job!

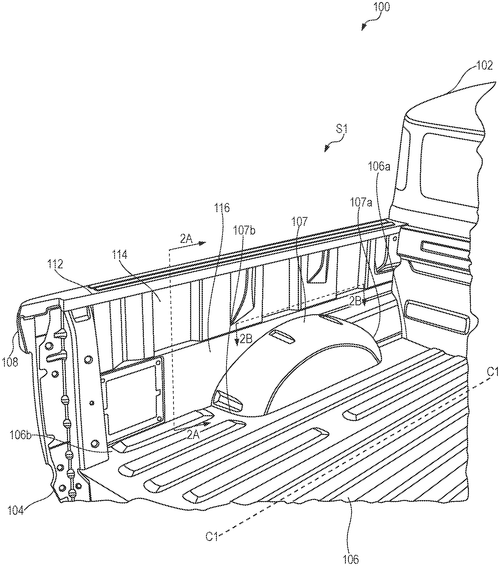

The patent describes a vehicle with a two-panel support structure for each side of the bed. The upper panel includes indentations from the cab-side to the tailgate side of the bed, and the lower panel includes extensions that extend into these indentations. These extensions create pockets into which platforms, boards, or other supports can be placed, providing additional stability and support for larger objects.
US Patent 11518320
FORD GLOBAL TECHNOLOGIES, LLC
Vehicle Seat Included with Inflatable Device for Rearward View
What is this invention?
Bulkhead mounted inflatable device
A vehicle had a bulkhead so great
And a seat that could rotate to face fate
The inflatable device was made of thermoplastic elastomer
That elongated cross-vehicle, no matter the weather
Provided support for both sides with its chambers inflating rearward in away-facing position.
FORD GLOBAL TECHNOLOGIES, LLC has just announced their latest innovation: the bulkhead mounted inflatable device. This thermoplastic elastomer device is designed to be used in vehicles and includes a middle chamber, a first side chamber, and a second side chamber. The chambers are all inflatable away from the bulkhead toward the rear side of the seatback when in an away-facing position. This allows for improved safety and comfort while driving as it provides additional cushioning against impact forces that may occur during travel. In addition, this device also helps reduce noise levels within the vehicle due to its sound absorption properties. With this new invention from FORD GLOBAL TECHNOLOGIES, LLC you can now enjoy quieter rides with increased protection!
A vehicle includes a bulkhead and a seat rotatable to a vehicle-rearward facing direction. The seat includes a seatback having a first side, a second side spaced from the first side, and a rear side. The rear side faces the bulkhead in the away-facing direction. The vehicle includes an inflatable device that is thermoplastic elastomer. The inflatable device has a middle chamber, first side chamber, and second side chamber. The middle chamber is inflatable away from the bulkhead toward the rear side of the seatback in the away-facing direction. The middle chamber is elongated cross-vehicle between the first side and second sides of the seatback.
US Patent 11518336
Ford Global Technologies, LLC
Computer Recognizes Mobile Device Operator
What is this invention?
Identification of vehicle operators
A computer system was quite slick,
It could identify a first pick,
From the profiles stored in memory
It extracted data so readily,
To determine who drove the vehicle.
Ford Global Technologies, LLC has just released a revolutionary new technology that can identify the operator of a vehicle by simply syncing a mobile device with it. This amazing system is able to extract contact information from your phone, compare it to existing profiles stored in its memory, and determine who the operator is. Once this person has been identified as an operator of the vehicle, the computer can then perform operations based on settings stored in their profile. This groundbreaking technology will make driving more secure than ever before – no longer do you have to worry about someone else getting into your car without permission! It also offers convenience for drivers who don’t want to keep entering their credentials every time they get into their car. With Ford’s Identification of Vehicle Operators system, all you need is your phone and you’re good to go!
The patent describes a computer system that can identify a first profile from a plurality of profiles stored in memory as associated with the mobile device. The computer system extracts predetermined set of information from data storing contact information for a plurality of contacts on the mobile device and determines that the predetermined set of information matches data in the first profile. The computer system then determines that a person associated with the first profile is an operator of the vehicle and performs an operation in accordance with at least one setting stored in the first profile.
US Patent 11518342
Hyundai Motor Company
An embodiment vehicle includes a camera that captures an image when the car is turned off. If there's a potential safety issue, the camera sends infor
What is this invention?
Vehicle and method of controlling the same
There was an embodiment vehicle so grand,
A camera, comm device and controller in hand.
It could detect when a danger had occurred,
And sent info to the external world.
All this done with its ignition off state,
For security it was quite great!
We are thrilled to announce the latest invention from Hyundai Motor Company - a vehicle and method of controlling the same. This revolutionary system includes at least one camera, a communicator, and a controller all connected together. With this setup, the controller is able to identify when your car has been turned off and acquire images based on that information. It then uses those images to detect any security-related dangerous situations such as break-ins or vandalism attempts, and can even transmit this information to an external device for further action if necessary. This new technology gives drivers peace of mind knowing that their vehicles will be safe even after they have left them unattended. Not only does it protect you from theft or other malicious activity, but it also provides valuable data about potential threats in your area so you can take extra precautions when parking your car in unfamiliar locations. We believe this innovation will make driving safer than ever before!
An embodiment vehicle includes a camera, a communication device, and a controller. The controller is configured to identify an ignition-off state of the vehicle, acquire at least one first image through the camera based on the ignition-off state of the vehicle, identify a possibility of occurrence of a security-related dangerous situation of the vehicle based on the acquired at least one first image, and in response to identifying the possibility of occurrence of the security-related dangerous situation, transmit information on the possibility of occurrence of the security-related dangerous situation to at least one external device.
US Patent 11518345
The Boeing Company
Brake System with Running Clearance
What is this invention?
Systems and method for determining running clearance brake command for a brake system
A brake system that's quite a sight
With force member and stack in flight
The running clearance, so fine
Measured with power divine
Will make braking commands precise and right
The Boeing Company has just unveiled a revolutionary new brake system that makes it easier than ever to ensure the safety of your vehicle. This innovative brake system includes a sensor, a force member, and a brake stack - all working together to determine the running clearance brake command for optimal braking performance. The force member is moveable between retracted and extended positions in response to the brake command, while the sensor measures any forces between the two components. Finally, this data is used by an onboard control unit to calculate an exact percentage of maximum braking power needed for optimum performance. This advanced technology ensures that you can drive with confidence knowing that your brakes are always performing at their best and keeping you safe on the road. With this improved braking system from The Boeing Company, you can be sure that your car will stop quickly and reliably every time!
The present disclosure provides a brake system that includes a brake stack, a force member moveable between a retracted position and an extended position in response to a brake command, wherein the force member contacts the brake stack in the extended position, and wherein the running clearance defined by distance between the brake stack and force member in retracted position is determined. A sensor is also included in communication with the brake stack to measure a force between the force member and the brake stack in response to braking commands. The running clearance brake command is then determined based on these measured forces for multiple braking commands. This allows for improved accuracy when determining how much power should be applied to brakes during vehicle movement.
US Patent 11518353
HYUNDAI MOTOR COMPANY
Keep your hands on the wheel - Vehicle includes driver assistance system, velocity control mode activated when carelessness is detected
What is this invention?
Vehicle and control method thereof
A vehicle that's quite clever and wise
Has a driver assistance system so nice
With an accelerator, brake, velocity sensor too
And a status sensor to get data on you
The controller will know if carelessness is detected
And the velocity control mode will be activated.
Driving can be a dangerous activity, and HYUNDAI MOTOR COMPANY has taken steps to make it safer with their new vehicle and control method. This system includes a driver assistance system, an accelerator for acceleration of the vehicle, a braking device for deceleration of the vehicle, and more. Additionally, this system also comes equipped with sensors that detect the current velocity of the vehicle as well as acquire data on how drivers are behaving behind the wheel. The most impressive feature of this invention is its ability to identify when drivers become careless while driving - such as speeding or not paying attention - and then activate a velocity control mode in order to help keep them safe. With this new technology from HYUNDAI MOTOR COMPANY, drivers can rest assured knowing that they have extra protection against potential dangers on the road.

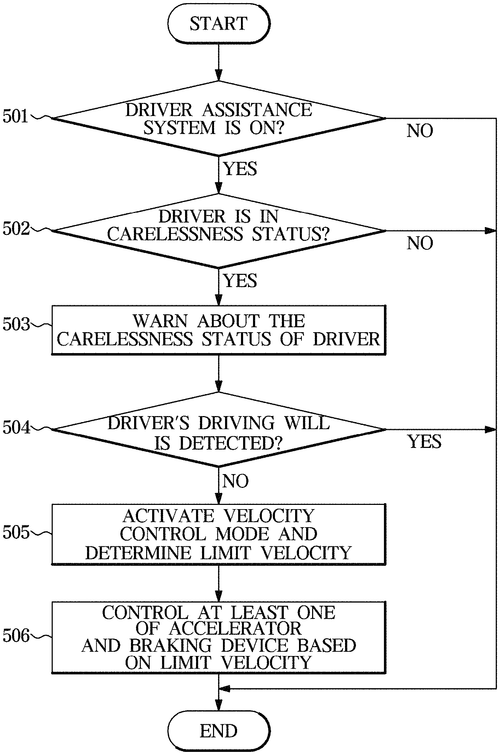

The vehicle includes a driver assistance system, an accelerator configured to perform acceleration of the vehicle, a braking device configured to perform deceleration of the vehicle, a velocity sensor configured to detect a current velocity of the vehicle, and a driver status sensor configured to acquire a driver's behavioral data. The controller is configured to identify a carelessness status of the driver based on the driver's behavioral data and to activate a velocity control mode when the carelessness status of the driver is detected in the activation status of the driver assistance system.
US Patent 11518373
FORD GLOBAL TECHNOLOGIES, LLC
Computer Predicts Vehicle Heading and Determines Threat
What is this invention?
Enhanced threat selection
A computer system that could tell
Which angle a target vehicle would veer,
It also determined the range,
If it was close enough to exchange,
Then an assessment of threat must appear.
FORD GLOBAL TECHNOLOGIES, LLC has developed a revolutionary new technology for enhanced threat selection. This system is designed to help drivers make better decisions when it comes to avoiding potential threats on the road. It uses a processor and memory to predict the heading angle of an approaching vehicle, determine the distance between that vehicle and your own car's center line, and then assess whether or not there is any risk involved in proceeding with your current course of action. With this innovative system in place, you can be sure that you are making informed decisions about how best to protect yourself while driving - no matter what situation may arise.
The patent describes a computer system that can predict the heading angle of a target vehicle and determine the distance between the host vehicle and center line of the target vehicle. If the distance is below a certain threshold, then a threat assessment may be performed for the target vehicle.
US Patent 11518381
HYUNDAI MOTOR COMPANY
Keep your car in lane with this nifty gadget
What is this invention?
Apparatus and method for controlling lane change in vehicle
A driver in his car was able
To use an apparatus that's stable
It sensed the external vehicle
And took a lane change command, if feasible
It then determined whether to accelerate
Safety is of utmost importance when it comes to driving, and Hyundai Motor Company has just unveiled their latest invention that will help drivers stay safe on the road. The Apparatus and Method for Controlling Lane Change in Vehicle has been designed to make lane changes more secure by providing an input device for the driver to receive a lane change command as well as a control circuit that can calculate a minimum operation speed for lane change control. This system also takes into account distances between vehicles when determining whether or not acceleration is necessary - ensuring that drivers always have enough time and space to safely switch lanes. With this new apparatus from Hyundai Motor Company, you can be sure you're doing everything possible to protect yourself while out on the roads!
The apparatus includes a sensor to sense an external vehicle, an input device to receive a lane change command from a driver of the vehicle, and a control circuit to be electrically connected with the sensor and the input device. The control circuit may receive the lane change command using the input device, calculate a minimum operation speed for lane change control, and determine whether to accelerate the vehicle based on a distance between a preceding vehicle which is traveling on the same lane as the vehicle and the vehicle, when a driving speed of the vehicle is lower than the minimum operation speed when receiving the lane change command.
US Patent 11518387
Hyundai Motor Company
Easy way to prevent car skidding with cooperative control of in-wheel motor
What is this invention?
Method of controlling braking when steering in-wheel motor vehicle
There once was a method of steering
That kept the tires from skidding and veering
It monitored the rotation,
To prevent vehicle commotion
And reduced any load that it was fearing
Driving safety is always a top priority, and Hyundai Motor Company has just released an innovative new method to help keep drivers safe. The Method of Controlling Braking when Steering an In-Wheel Motor Vehicle monitors the required tire rotation angle for each steering angle and compares it with the actual tire rotation angle to detect any discrepancies. If any are found, then a vehicle braking force is generated to prevent skidding or other dangerous conditions from occurring. This technology offers drivers improved control over their vehicles and enhanced peace of mind while on the road.
The method of controlling braking when steering an in-wheel motor vehicle includes monitoring a required tire rotation angle for each steering angle and an actual tire rotation angle when performing cooperative control of an in-wheel motor for reducing a steering load, and generating a vehicle braking force in a case where the actual tire rotation angle exceeds the required tire rotation angle. This prevents a vehicle-skidding phenomenon, which can be difficult to prevent with traditional methods.
US Patent 11518389
HYUNDAI MOTOR COMPANY
New Device Alerts Drivers of Control Authority Transitions
What is this invention?
Apparatus and method for providing notification of control authority transition in vehicle
A device of great complexity
Had a speaker, motor and circuitry
It could sound alerts
And vibrate the cells
For first, second, then third intervals elapsing with glee.
Driving safety is paramount, and Hyundai Motor Company has just unveiled an innovative new way to ensure that drivers are always aware of the control authority transition in their vehicles. The apparatus includes a speaker for sound notifications, a vibration motor for tactile notifications, and a control circuit to manage both outputs. When transitioning from manual to autonomous driving or vice versa, the system will output three different types of notifications: firstly with sound only during the initial time interval; secondly with both sound and vibration when this time interval elapses; and finally with both sound and vibration again after another brief period. This ensures that drivers are fully aware of any changes in control authority while they’re behind the wheel - allowing them to remain alert at all times. Hyundai Motor Company's invention demonstrates how technology can be used to make driving safer than ever before - enhancing driver awareness no matter what situation arises on the road ahead.
The apparatus includes a speaker, a vibration motor, and a control circuit. The control circuit is configured to output sound notifications using the speaker during first, second, and third time intervals, respectively. The control circuit is also configured to output vibrations notifications using the vibration motor after each of the first, second, and third time intervals have elapsed.
US Patent 11518403
Hyundai Motor Company
The Foldable Steering System That Makes Driving Easier
What is this invention?
Foldable steering system for vehicle
A foldable steering system was made
For a driver's seat to be less grade
It can fold in the wheel
When autonomous mode is real
And extend out when manual needs played
Hyundai Motor Company has just unveiled their revolutionary new foldable steering system for vehicles. This system is designed to maximize the spatial utilization of a driver’s seat, allowing them to fold in the steering wheel, shaft, shrouds and more when they are not needed. This means that when an autonomous driving mode or stopping mode is selected, there will be extra room available in the car. The system also ensures safety and convenience by folding out these components when manual driving, fail mode or active safety modes are switched on. With this innovative technology from Hyundai Motor Company, you can now enjoy all the benefits of an autonomous vehicle without compromising on space or safety!
The patent describes a foldable steering system for a vehicle. This system may maximize spatial utilization of a driver seat by performing a fold-in operation in which the steering wheel, the steering shaft, shrouds, and the like are accommodated in a crash pad when an autonomous driving mode, a stopping mode, or a getting-in/out mode is selected as a driving mode of an autonomous vehicle. When the driving mode of the autonomous vehicle is switched to a manual driving mode, an autonomous driving fail mode, or an active safety mode for coping with collision avoidance, the system may perform a fold-out operation in which the steering wheel, the steering shaft, shrouds, and the like extend from an interior of the crash pad toward the driver seat.
US Patent 11518426
Ford Global Technologies, LLC
Keep your tailgate open with our easy to use assembly!
What is this invention?
Multi-position tailgate and support system
A tailgate assembly for a car,
Including cable device and bar.
The tailgate connector's coupled to the gate,
Vehicle connector couples to sidewall in state;
Bracket blocks removal so it won't mar!
Ford Global Technologies, LLC has done it again. They have just released a revolutionary new tailgate and support system that is sure to make life easier for car owners everywhere. This multi-position tailgate assembly allows the tailgate to be opened in two different positions - a fully open position and a secondary position between closed and fully open. The cable device connecting the tailgate connector with the vehicle connector also supports the tailgate when in either of these positions, while a bracket prevents removal of the tailgate from the vehicle body when in either of these positions. This convenient feature makes it easy to access items stored inside your car without having to worry about them falling out or being stolen. With this advanced technology from Ford Global Technologies, you can now enjoy greater convenience and security each time you use your car’s trunk!
The tailgate assembly for a vehicle includes a tailgate configured to pivot relative to the vehicle body between a closed position, a fully open position, and a secondary position that is between the closed position and the fully open position. The assembly further includes a cable device having a tailgate connector and a vehicle connector. The tailgate connector is coupled to the tailgate. The vehicle connector couples to a sidewall of the vehicle in first position to support the tailgate in the fully open position. The vehicle connector couples to the sidewall of the vehicle in second position to support the tailgate in a secondary position. The first position is vertically below the second position. The assembly still further includes a bracket that blocks removal of the tailgate from the vehicle body when it's in either of those positions.
US Patent 11518449
Airbus Operations GmbH
A Reinforcing Element for a Structural Profile - Formed to be Shrinkable by Heating
What is this invention?
Reinforcing element for a structural profile, structural arrangement, aircraft or spacecraft and method for producing a structural arrangement
A structural profile got a lift
With this reinforcing element, a gift
It had a hollow-cylindrical mesh
Formed to receive the structure afresh
In aircraft and spacecraft construction it's swift!
Airbus Operations GmbH has just unveiled a revolutionary reinforcing element for structural profiles, specifically round, oval or elliptical tubes. This new technology combines a fiber structure with a matrix material that is shrinkable when heated. The result? An inner shell surface that can be fastened to the structural profile with heat - creating an incredibly strong bond. This breakthrough invention not only makes it easier and faster to reinforce structural profiles than ever before, but also provides aircraft and spacecrafts with greater stability and strength due to its superior bonding capabilities. Airbus Operations GmbH's method for producing such a structural arrangement is sure to revolutionize the aerospace industry in years to come.
This reinforcing element for a structural profile, in particular for a round, oval or elliptical structural tube, comprises a fiber structure which has a hollow-cylindrical, helically wound mesh of fiber strands and forms an inner shell surface formed to receive the structural profile. The matrix material into which the fiber strands are respectively embedded is also formed to be shrinkable by heating so that the fiber structure can be fastened to the structural profile with the inner shell surface. This reinforcing element is useful for aircraft and spacecraft construction.
US Patent 11518488
AIRBUS OPERATIONS GMBH
Close That Door!
What is this invention?
Door arrangement with articulated arm, aircraft area with door arrangement and aircraft with aircraft area
There once was an aircraft with a door,
It had an arm to move it galore.
It could translate and rotate,
Giving passengers the right state,
For this door arrangement they did adore!
Today we are excited to introduce the latest innovation from AIRBUS OPERATIONS GMBH - a door arrangement with an articulated arm for aircraft. This revolutionary invention is designed to close an aperture in the outer skin of an aircraft and move the door in at least two translational directions and at least two rotational directions. With this new technology, aircraft can now have more efficient access points that require less maintenance and provide greater safety. Not only does this system make air travel easier than ever before, but it also ensures that passengers remain safe while on board their flight. We are proud to be able to offer such a cutting-edge solution for our customers!
The door arrangement for an aircraft comprises a door designed to close an aperture in the outer skin of the aircraft, and a articulated arm which is fixed by a first end to the door and which is designed to move the door in at least two translational directions and at least two rotational directions. The aircraft area with this door arrangement and an aircraft having such an aircraft area are furthermore provided.
US Patent 11518491
The Boeing Company
Flap Actuation Systems Keep Your Aircraft Flying
What is this invention?
Flap actuation systems for aircraft
A flap actuation system was found,
To stow or deploy a wing around.
The crank arm then would pivot,
The rocking lever plate shift,
And the flap bracket move up and down!
The Boeing Company has just unveiled their newest invention – the Flap Actuation System for Aircraft. This system is designed to allow aircraft wings to move between a stowed and deployed position with ease. The system consists of a fixed beam that extends downward from the wing, a rocking lever plate pivotably coupled to the fixed beam, and other components such as crank arms and rods. When actuated, this system will use the force generated by these components to smoothly move the flap up or down in relation to the wing portion of an aircraft. This new technology provides aircrafts with greater control over their flaps than ever before, allowing them greater maneuverability when flying at different speeds or altitudes. It also helps reduce overall weight on an aircraft without sacrificing performance or safety - making it ideal for commercial airlines looking for ways to cut costs while still providing passengers with a safe ride. We are excited about this innovation from The Boeing Company and can’t wait to see what else they come up with!
The flap actuation system described in this text allows an aircraft wing to be deployed or stowed. The system includes a fixed beam coupled to and extending downward from the wing, a rocking lever plate pivotably coupled to the fixed beam, and a flap link coupled between the rocking lever plate and an aft end of the flap bracket. When activated, the crank arm pivots the rocking lever plate to move the flap between a stowed position and a deployed position relative to the wing.
US Patent 11518496
THE BOEING COMPANY
Aircrafts with Foldable Wings Disclosed
What is this invention?
Aircraft having foldable wings
An aircraft with foldable wings,
A hinge interface it brings;
The first hinge has a spanwise direction,
To the fuselage centerline it's connected;
With dimensions that are quite distinct,
This craft is sure to be a hit!
The Boeing Company has come up with a revolutionary new design for aircraft - one that features foldable wings. This innovative design allows the wings of an aircraft to be folded away, making it easier to store and transport without taking up too much space. The hinge interface used in this design is designed so that the first dimension in a spanwise direction is greater than the second dimension in a chordwise direction, allowing for more flexibility when folding and unfolding the wings. This breakthrough technology from Boeing provides many benefits, such as enhanced storage and transportation capabilities, improved safety during flight operations due to reduced wing surface area exposed to wind gusts, and reduced drag on takeoff or landing roll due to less wing area presented to airflow. With these advantages comes increased efficiency - both fuel economy and time savings can be gained by utilizing this advanced technology. We are excited about what this innovation could mean for air travel!
An aircraft with foldable wings is disclosed. The hinge interface has a first hinge defining a hinge axis that is substantially parallel to the fuselage centerline. The first hinge has a first dimension in a spanwise direction and a second dimension in a chordwise direction. The first dimension is greater than the second dimension.
US Patent 11518500
The Boeing Company
Rugged Amphibious Air Vehicle Propels Itself with Wings and Fans
What is this invention?
Robust amphibious aircraft
A craft with wings and buoyant stabilizers,
It's lift fan in the fuselage enhancers.
It moves forwards or back,
With rotatable track,
An amphibious air vehicle is its answer.
The Boeing Company has done it again with the invention of their robust amphibious aircraft! This revolutionary air vehicle is designed to provide a unique combination of vertical and horizontal flight capabilities, making it perfect for a variety of applications. The fuselage features buoyant stabilizers and wings that extend from the fuselage, while at least one lift fan is mounted in the fuselage. Additionally, movable propulsion units are carried by the wings which can be rotated through a range of angles to suit different flight operations. This new aircraft will make flying easier than ever before - allowing you to take off vertically and then transition into horizontal flight modes without having to switch between multiple types of vehicles or equipment. Whether you're looking for an efficient way to travel over water or land, this amphibious aircraft offers unparalleled versatility and convenience like never before!
The patent describes a type of amphibious air vehicle that incorporates buoyant stabilizers and wings to allow it to fly in both vertical and horizontal directions. The lift fan is also located in the fuselage, allowing the vehicle to be propelled forwards or backwards using rotatable propulsion units.
US Patent 11518508
Airbus Operations GmbH
Bleed your engine or APU with our air supply system!
What is this invention?
System and method for determining the origin of an oil leakage in an air supply system
A system that's quite complex and neat
Includes two sources of bleed air to heat
An AC pack for cooling,
And ducts for pooling
Detectors measure oil on the beat.
Airbus Operations GmbH has just unveiled a revolutionary system and method for determining the origin of an oil leakage in an air supply system. This new invention is designed to help aircraft owners identify leaks quickly and accurately, allowing them to take appropriate action as soon as possible. The system works by using bleed sources - engines or auxiliary power units that use oil as lubricant - connected via bleed ducts to at least one air conditioning pack. A plurality of detectors are then associated with each bleed source, configured for detecting substances specific for the oil which can indicate a leak within the system. With this innovative solution, it’s now easier than ever before to pinpoint exactly where a leak is occurring so that it can be fixed quickly and efficiently without any further damage being done. This new invention from Airbus Operations GmbH will no doubt revolutionize how aircraft owners maintain their systems, making it easier than ever before to detect potential problems before they become major issues.
The air supply system includes at least two bleed sources, each of which has an engine or an auxiliary power unit and oil as lubricant. The system also includes one air conditioning pack for cooling the bleed air from the bleed sources, and a plurality of bleed ducts that connect one of the bleed sources to the air conditioning pack. The system further includes a plurality of detectors that are associated with each bleed source and are configured for detecting substances specific for oil.
US Patent 11518521
THE BOEING COMPANY
Airplane with Dual Vents Delivers Dry and Comfortable Air
What is this invention?
Aircraft moisture control
An aircraft that's quite unique and grand
A duct is included in its plan
It has drying vents in the crown,
And cabin vents all around
To keep passengers safe on land!
The Boeing Company has once again revolutionized the aircraft industry with their latest invention - Aircraft Moisture Control. This new system includes a duct within the fuselage of an aircraft, coupled to one or more drying air vents in the crown region and cabin vents in the cabin region. The drying air vents are configured to output drying air into the crown region, while the cabin vents are configured to output conditioned air into the cabin region. Additionally, this system also includes one or more valves that can be used to route airflow within the duct either to the drying air vents or to the cabin vents depending on need. This revolutionary technology is sure to make flying more comfortable and enjoyable for passengers by providing better moisture control throughout an aircraft’s interior. It will also help airlines save money by reducing maintenance costs associated with condensation buildup due to humidity levels inside cabins not being properly regulated. With this new invention from The Boeing Company, we have taken another step towards making airline travel even safer and more efficient!
The aircraft includes a duct that is coupled to one or more drying air vents disposed in the crown region and one or more cabin vents disposed with the cabin region. The one or more drying air vents are configured to output drying air into the crown region, and the one or more cabin vents are configured to output conditioned air into the cabin region. The aircraft also includes one or more valves that are coupled to the duct and are configured to, in a first valve position, route airflow within the duct to the one or more drying air vents and configured to, in a second valve position, route airflow within the duct to the one or more cabin vents.
US Patent 11518522
AIRBUS OPERATIONS GMBH
Aircraft Air Conditioning System Keeps You Cool
What is this invention?
Aircraft air conditioning system with a cabin exhaust air turbine
There was an aircraft air conditioner
With a compressor in the ambient air line
It had a refrigerant circuit too
To transfer heat from the view
And to cool down that cabin of mine
Airbus Operations GmbH has just unveiled a revolutionary new aircraft air conditioning system that is sure to revolutionize the way we fly. This system features an ambient air line, compressor and refrigerant circuit coupled thermally to transfer heat from the ambient air, as well as a cabin exhaust air turbine connected to the ambient air compressor. This innovative solution allows for cabin exhaust air to be used to drive the ambient air compressor, saving energy and helping reduce emissions in the process. The use of this turbine also helps keep your aircraft cooler by transferring heat from outside into the refrigerant before it is supplied into the mixer - ensuring you have comfortable temperatures inside your plane at all times! The Airbus Operations GmbH Aircraft Air Conditioning System with Cabin Exhaust Air Turbine is set to make flying more efficient than ever before - reducing energy costs while keeping passengers cool and comfortable during their flight. We can’t wait to see what other innovations they come up with next!
The aircraft air conditioning system includes an ambient air line, for ambient air to flow through, connected to supply ambient air to a mixer of the aircraft air conditioning system. An ambient air compressor is arranged in the ambient air line for compressing the ambient air flowing there through. A refrigerating apparatus comprises a refrigerant circuit for a refrigerant to flow through, including a refrigerant compressor arranged in the refrigerant circuit. The refrigerant circuit is coupled thermally to the ambient air line to transfer heat from the ambient air to the refrigerant before the ambient air is supplied to the mixer. A cabin exhaust air turbine is connected to a cabin exhaust air line, is coupled to the ambientair compressor arranged in the ambientair line, and is configured to expand the cabin exhaust airflow flowing throughthe cabin exhaustairline andto drivetheambientaircompressor
US Patent 11518523
The Boeing Company
Passive Airflow Sensing Device Exposed to Secondary Air
What is this invention?
Systems and methods of sensing temperature of air in a passenger area of a fuselage
A temperature sensing device was made
Including an air distribution inlet, grade A
The cabin air inlet drew secondary air
Due to a pressure difference there and there
And a sensor downstream exposed to the flow, which did fare
The Boeing Company has recently unveiled a revolutionary new system for sensing the temperature of air in passenger areas of aircraft fuselages. This system utilizes an air distribution inlet and a cabin air inlet, which are connected by a duct. The secondary air is drawn into the cabin air inlet due to pressure differences present within the duct, and then flows through it towards the temperature sensor that is positioned downstream from the cabin air inlet. This allows for accurate readings of temperatures within passenger areas without having to install additional equipment or sensors. This advanced technology will make it easier than ever before for airlines to monitor and maintain comfortable temperatures onboard their aircrafts, ensuring passengers have an enjoyable flight experience each time they fly with them. It also opens up possibilities for further innovations related to climate control on airplanes, making flying even more pleasant than before!
This example temperature sensing device includes an air distribution inlet through which primary air is blown into via an environmental control system, a cabin air inlet through which secondary air enters from a passenger area of a fuselage and the cabin air inlet is coupled to the air distribution inlet through a duct. The secondary air is passively drawn into the cabin air inlet and to the duct due to a pressure difference present in the duct, and a temperature sensor is coupled to the duct and positioned downstream of the cabin air inlet along an airflow path of the secondary air so as to be exposed to the secondary air drawn in through the cabin air inlet and flowing through the duct.
US Patent 11518524
Airbus Operations GmbH
Emergency Locating Device Reliable, Robust and Independent of Aircraft-Mounted Systems
What is this invention?
Emergency localization device, in particular ELT, for initiating an emergency measure
There was a device that worked with ease
It could detect emergency with ease
The control unit received parameters from the sensors
And it calculated risk levels to please
If the threshold was exceeded, then it would initiate an emergency measure
Giving us assurance and peace.
Airbus Operations GmbH has recently unveiled a revolutionary new Emergency Localization Device (ELT) that can help initiate emergency measures in the event of an accident. This device features a control unit, at least one acceleration sensor, and at least one position sensor to receive motion and/or position parameters from the sensors. Using predefined logic, it can calculate a risk level for an emergency situation and initiate an emergency measure if necessary. What sets this ELT apart is its reliability, robustness and independence from aircraft-mounted systems. It doesn't require any additional costly equipment or complicated setup processes - all you need is the ELT itself! With this device, Airbus Operations GmbH has made sure that safety remains top priority even in extreme circumstances.
The emergency localization device described herein is reliable, robust and largely independent of aircraft-mounted systems. The control unit is configured to receive a plurality of motion and/or position parameters from the acceleration sensor and/or from the position sensor, and by evaluating the plurality of motion or position parameters to determine a risk level for an emergency using a predefined logic. If the calculated risk level exceeds a predefined threshold, then the emergency localization device will initiate an emergency measure.
US Patent 11518539
THE BOEING COMPANY
Aircraft Performance Analysis System Keeps Aircraft Rolling In The Right Direction
What is this invention?
Aircraft performance analysis system and method
A system for aircraft performance
Was created with a great insistence
It takes flight data and more
To create a new score
For an analysis of the plane's ascension.
The Boeing Company has revolutionized aircraft performance analysis with the introduction of their new Aircraft Performance Analysis System and Method. This system is designed to receive original performance model data, as well as flight data from an aircraft, in order to determine a current performance model for the aircraft. In other words, this system allows airlines and pilots to accurately measure the current condition of an aircraft in real-time - something that was previously impossible without manual calculations or guesswork. With this technology, airlines can ensure maximum safety and efficiency when flying their fleets while also having access to valuable insights into how they can improve their operations over time. The Boeing Company's Aircraft Performance Analysis System and Method are sure to be a game-changer for aviation professionals everywhere!
The patent describes a system and method for performing an aircraft performance analysis. The system includes a performance analysis control unit that receives original performance model data, receives flight data from an aircraft, and determines a current performance model for the aircraft based on the original performance model data and the flight data.
US Patent 11518546
CANON KABUSHIKI KAISHA
Liquid Container With Sealed Caves Keeps Food Safe
What is this invention?
Liquid container and manufacturing method of the same
A container with a lid, quite clever
It stores liquid in an isolated state ever
Project portions engage the rib
Bonding resin seals the cavity, no fib
The liquid stays safe and never gets better
We are excited to introduce the latest innovation from CANON KABUSHIKI KAISHA – a liquid container that is designed to store multiple liquids in an isolated state. This container features a lid with integrated project portions that engage with partition ribs, creating a secure seal between the edge of the rib and both the lid and outer circumference of the container. Additionally, bonding resin is used to fill any cavities created by this process, ensuring a tight seal for each storage portion. This new liquid container is perfect for applications where you need to store multiple types of liquids separately without worrying about them mixing together or leaking out. With its innovative design and secure sealing system, it’s sure to become your go-to choice for all your liquid storage needs!
This liquid container includes a container portion and a lid. The container portion includes a plurality of storage portions separated by at least one partition rib, which stores liquid respectively in an isolated state. The lid is bonded with the container portion so as to cover an opening region of the container portion. A plurality of project portions engage with the partition rib so as to sandwich the partition rib from both sides of the partition rib, and are integrally molded with the lid. In a state in which the partition rib is engaged with the project portions, a bonding portion is filled with bonding resin so as to seal a cavity between an edge end of the partition rib and the lid and a cavity between an edge end of an outer circumference of the container portion and the lid.
US Patent 11518577
Canon Kabushiki Kaisha
A New Reading Apparatus Inclines Surface of Transmitting Member Toward Downstream in Sheet Feeding Direction
What is this invention?
Reading apparatus and image forming system
There was a reading apparatus made
That included two roller pairs laid
A light transmitting member too
And an opposing one in view
So that all the sheets would be weighed
Canon Kabushiki Kaisha has done it again! They have invented a reading apparatus and image forming system that is sure to revolutionize the document scanning industry. This new system includes a first roller pair, a second roller pair, a light transmitting member, a reading portion and an opposing member. The transmitting member is disposed between the first and second roller pairs in the sheet feeding direction on one side of the nip line of the first roller pair while the opposing member is on its opposite side. Additionally, as seen in widthwise direction with respect to the sheet being fed through this apparatus, there is an inclined surface which allows for more accurate readings from documents passing through it. This incredible invention will make scanning easier than ever before - no more worrying about whether or not your documents are being accurately read by your scanner! With Canon's Reading Apparatus and Image Forming System you can rest assured that all of your scans are being performed with precision accuracy every time.
The reading apparatus includes a first roller pair, a second roller pair provided downstream of the first roller pair, a light transmitting member, and an opposing member. The transmitting member is disposed between the first and second roller pairs in a sheet feeding direction and on a first side in a vertical direction with respect to a nip line of the first roller pair. The opposing member is disposed on the second side opposite to the first side with respect to the transmitting member. As seen in a sheet widthwise direction, the surface of the second side of the transmitting member in the vertical direction is inclined, with respect to the nip line, to slope down toward downstream of the sheet feeding direction.
US Patent 11518634
CANON KABUSHIKI KAISHA
Sheet conveyance apparatus with rotating guide - Keep your office organized and efficient!
What is this invention?
Sheet conveyance apparatus, sheet processing apparatus, and image forming system
A driver and a guide, you see
Were used to convey sheets with glee
The roller was spun
To move the sheet's end from one
And thus began its rotation spree
Today we’re very excited to introduce CANON KABUSHIKI KAISHA's new sheet conveyance apparatus, sheet processing apparatus, and image forming system. This innovative system is designed to make conveying sheets easier than ever before - allowing you to move sheets quickly and efficiently from one location to another. The key feature of this system is its roller pair with a first roller and second roller which allows the trailing end of a preceding sheet to be moved from the position above the first guide into a position between the second guide and sheet support by simply rotating the guide. Additionally, when this rotation takes place, it also enables succeeding sheets conveyed by the roller pair subsequently after that one can pass through without any disruption or delay. We believe this revolutionary technology will bring convenience and efficiency for many businesses in need of quick document conveyance services. With CANON KABUSHIKI KAISHA's state-of-the-art technology at your disposal, you'll never have to worry about slow or inefficient document movement again!
The sheet conveyance apparatus includes a controller controlling a driver to cause a guide to start rotation in a state in which a trailing end in a sheet conveyance direction of a preceding sheet conveyed by the roller pair has been moved from the position above a first guide to between the second guide and the sheet support. The first roller is rotated by the driving force supplied from the driving source, and the guide rotates about its own rotation axis while rotating relatively to the first roller.
US Patent 11518638
